Status Assessment 2021 - Spurdog
|Assessment of status||Distribution||Population size||Stock assessment (ICES 2018)||Demographics, e.g. productivity||Previous OSPAR status assessment||Status|
|Assessment of key pressures||Fisheries-bycatch||(no targeted fisheries)||Habitat damage and pollution||Threat or impact|
Explanation to table:
Distribution, Population size, Condition
Trends in status (since the assessment in the background document)
↓ decreasing trend or deterioration of the criterion assessed
↑ increasing trend or improvement in the criterion assessed
←→ no change observed in the criterion assessed
? trend unknown in the criterion assessed
Previous status assessment: if in QSR 2010 then enter regions where species occurs ( ○) and has been recognised by OSPAR to be threatened and/or declining (● ). If a more recent status assessment is available, then enter ‘poor’/’good’
Status (overall assessment)
red – poor
green – good
Blue cells ? –status unknown, insufficient information available,
NA - Not Applicable
*applied to assessments of status of the feature or of a criterion, as defined by the assessment values used in the QSR 2023 or by expert judgement.
↓ key pressures and human activities reducing
↑ key pressures and human activities increasing
←→ no change in key pressures and human activities
? Change in pressure and human activities uncertain
Threat or impact [overall assessment]
red – significant threat or impact;
green –no evidence of a significant threat or impact
Blue cells – insufficient information available
NA – not applicable
1 – direct data driven
2 – indirect data driven
3 – third party assessment, close-geographic match
4 – third party assessment, partial-geographic match
5 – expert judgement
Spurdog was nominated for inclusion on the OSPAR List of Threatened and/or Declining Species and Habitats in 2006 and the species has been included since 2008 (OSPAR Agreement 2008-6). It was included due to its sensitivity (i.e. very vulnerable to fisheries because of its very low intrinsic rate of increase and it is very slow to recover from depletion) and its severe decline in all OSPAR Regions. The last OSPAR assessment of this species was carried out in 2010, which concluded that the spurdog stock was seriously depleted by fisheries throughout the OSPAR Maritime Area (OSPAR 2010).
The status of this species is based on ICES advice to fisheries managers for fishing opportunities. This advice has been integrated into an assessment for conservation purposes.
Geographical Range and Distribution

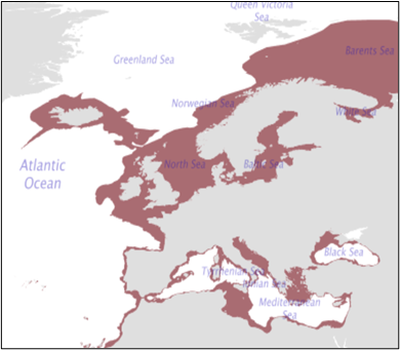

The spurdog has a near-worldwide distribution in temperate and boreal waters. In the Northeast Atlantic it is found from Iceland and the Barents Sea southwards to the northwest coast of Africa, though the stock is more abundant from the Bay of Biscay northwards (ICES, 2019). Tagging studies suggest a single Northeast Atlantic stock although transatlantic migrations have been recorded (Holden 1967, ICES 2019). Despite their wide-ranging distribution, both resident and migratory individuals occur in populations that have been studied so far (Burgess 2002, Thorburn et al. 2015, Thorburn et al. 2018).
ICES advises that, when the precautionary approach is applied, there should be no targeted fisheries on this stock in 2021 and 2022 (ICES 2020).

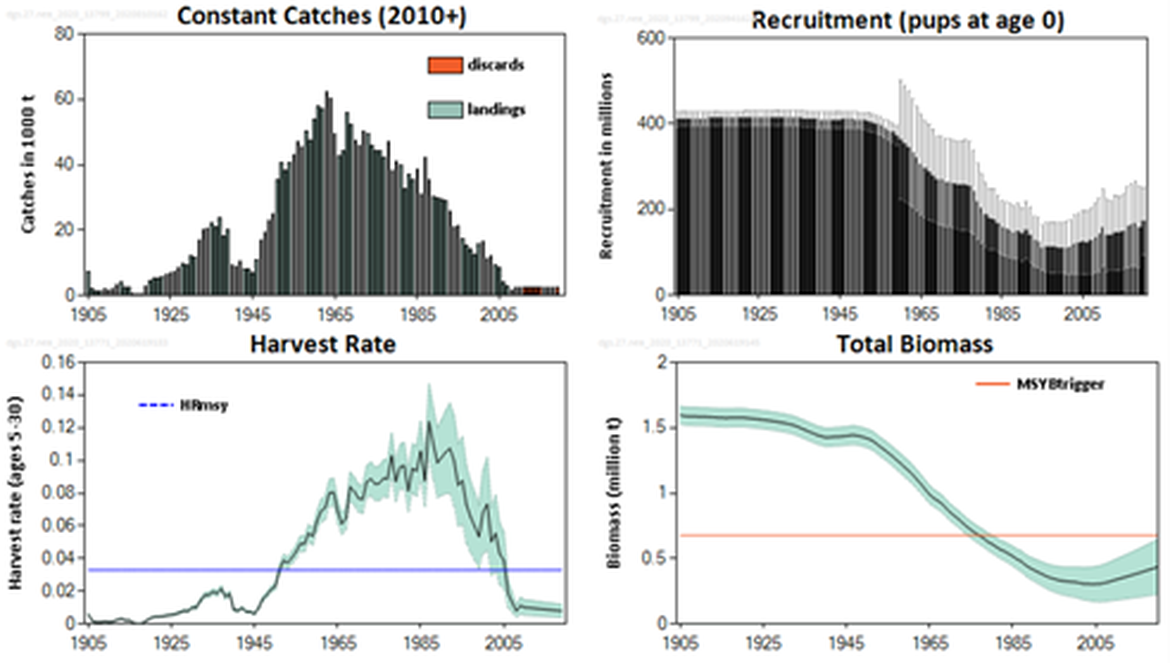

ICES currently carries out a Category 1 assessment for spurdog. In 2019 ICES reported that “All analyses presented in previous reports of WGEF have indicated that the NE Atlantic stock of spurdog declined over the second half of the 20th century, but now appears to be increasing. The current stock size is thought to be ca. 24% of virgin biomass. Although spurdog are less frequently caught in groundfish surveys than they were 20 years ago, there is some suggestion that spurdog are now being more frequently seen in survey hauls, and survey catch rates are starting to increase”.
The spurdog is relatively long-lived, with a maximum age of at least 40 years (Fahy 1989), and it is also slow-growing and late-maturing. There is sexual dimorphism in body size, with females attaining a larger size. The species is therefore particularly vulnerable to fishing mortality. There is a biennial reproductive period, with gestation lasting from 18 to 25 months (Ford 1921, Gauld 1979, Jones and Ugland 2001). The population size decreased over the 20th century, and there is thought to have been a density-dependent increase in fecundity (Ellis and Keable 2008).
Breeding in this species takes place every other year (Holden and Meadows 1962, Sosinski 1978, Fahy 1989). Fecundity increases with size (Ellis and Keable 2008). The embryonic development starts in November (Ford 1921). The length at birth ranges from 19-31 cm (Ford 1921, Gauld 1979) and pupping occurs from late August to December (Ford 1921, Holden and Meadows 1962, Gauld 1979, Jones and Ugland 2001). Copulation is assumed to occur offshore soon after the females give birth (Holden 1965).
Recent research indicates a steeper increase in younger year-class strength in Norwegian waters than estimated in the current ICES assessments, and, therefore, potential for a much swifter recovery of the spurdog stock (Albert et al. 2019).
Threats and Impacts
Since 2011 targeted fisheries for spurdog have been prohibited in EU (including UK) and Norwegian waters. Bycatch of this species still takes place however, primarily in mixed demersal and gill net fisheries. Discard survival rates are unknown but are likely to be variable.
Damage to the natural habitat of spurdogs from mobile fishing gears or pollution is also likely to occur. The potential impacts on spurdog are associated with habitat loss and degradation. Coastal development, pollution, dredging and bottom trawling affect the habitats on which spurdog and/or their prey are reliant (ASMFC 2008, Fordham et al. 2016).
Measures that address key pressures from human activities or conserve the species/habitat
Management measures for spurdog have only been restrictive across the stock area since 2009 and harvest rates have been below the Maximum Sustainable Yield (MSY) level since 2005 (ICES 2019). In 2009, a maximum landing length (100 cm) was introduced in EU waters. This was intended to deter fisheries targeting mature female spurdog. In 2010 the Total Allowable Catch (TAC) was reduced by 90% and further set to zero from 2011. Hence there have been no targeted fisheries in EU waters since the last OSPAR assessment. In Norwegian waters there has been a minimum landing size of 70 cm (introduced in 1964) and also no directed fishing since 2011, although dead bycatch can be landed.
NEAFC has implemented a recommendation for this species (Rec. 8/2021 (2021-2022). This prohibits directed fishing and states that bycatch must be promptly released alive.
Conclusion (including management considerations)
Spurdog is a prohibited species for commercial fishing in EU waters, with the exception of bycatch within approved avoidance programmes. Target fisheries are also prohibited in Norwegian waters, though dead bycatch is landed. The current IUCN listing for this species in European waters is ‘Endangered’ (Nieto et al. 2015). There are some indications that the status of the Northeast Atlantic stock is improving and recruitment of this species appears to have improved over the last ten years. However, the stock of this species is still low compared to historic levels and the threat of bycatch persists.
While there are indications that the stock is improving, the status of the stock relative to historic levels is low, and the life history and behaviour of the species are such that it continues to need protection.
There are concerns over the availability of robust input data used for the assessment (ICES 2018). For example, reliable catch data since 2010 are not available. Future assessments require updated and validated growth parameters and better estimates of natural mortality (ICES 2018).
There is also a lack of accurate data on the location of pupping and nursery grounds, and their importance to the stock, which preclude spatial management for this species at the present time. In addition, there is a lack of knowledge on effects of pollutants or habitat degradation on this species.
The current assessment model is considered to be suitable for the assessment. However, spurdog has recently undergone an ICES benchmark process (2021) and will be subject to an updated assessment and advice in 2022. Additional surveys have been included to cover the entire spatial component of the stock. Available discard data and updated life history information (e.g. fecundity-at-length, growth parameters and estimates of natural mortality) have been included. In addition, the estimation of reference points has been explored.
The assessment is based on ICES stock assessments and peer-reviewed literature.
Albert, O.T., Junge, C., and Myrlund, M.K. 2019. Young mums are rebuilding the spurdog stock (Squalus acanthias L.) in Norwegian waters. ICES Journal of Marine Science, 76(7), pp.2193-2204.
ASMFC. 2008. Management Report No. 46 of the Atlantic States Marine Fisheries Commission. 172p. Accessed online (August 2015): http://www.as-mfc.org/uploads/file/interstateFMPforAtlanticCoastalSharks.pdf
Burgess, G.H. 2002. Spiny Dogfish/ Squalus acanthias Linnaeus 1758. In: B.B. Collette BB, Klein-MacPhee G, editors, Fishes of the Gulf of Maine, 3rd ed. Washington: Smithsonian Institution Press, p. 54-57.
Ellis, J.R., and Keable, J. 2008. The fecundity of Northeast Atlantic spurdog (Squalus acanthias L., 1758). ICES Journal of Marine Science 65: 979–981.
Fahy, E. 1989. The spurdog Squalus acanthias (L.) fishery in south-west Ireland. Irish Fisheries Investigations Series B (Marine) 32: 22p.
Ford, E. 1921. A contribution to our knowledge of the life-histories of the dogfishes landed at Plymouth. Journal of the Marine Biological Association of the UK 12: 468–505.
Fordham, S., Fowler, S.L., Coelho, R.P., Goldman, K., and Francis, M. P. 2016. Squalus acanthias. The IUCN Red List of Threatened Species 2016: e.T91209505A2898271. http://dx.doi.org/10.2305/IUCN.UK.2016-1.RLTS.T91209505A2898271.en
Gauld, J. 1979. Reproduction and fecundity of the Scottish-Norwegian stock of spurdog, Squalus acanthias (L.). International Council for the Exploration of the Sea CM 1979/H:54: 9pp.
Holden, M.J. 1965. The stocks of spurdogs (Squalus acanthias L.) in British waters, and their migrations. Fisheries Investigations Series II Marine Fisheries Great Britain Ministry of Agriculture, Fisheries and Food 24 (4): 1–20.
Holden, M.J. 1967. Transatlantic movement of a tagged spurdogfish. Nature, 214(5093), 1140–1141.
Holden, M.J, and Meadows, P.S. 1962. The structure of the spine of the spur dogfish (Squalus acanthias L.) and its use for age determination. Journal of the Marine Biological Association of the UK 42: 179–197.
ICES. 2018. Spurdog Squalus acanthias in the Northeast Atlantic. In Report of the ICES Advisory Committee, 2018. ICES Advice 2019 dgs.27.nea https://doi.org/10.17895/ices.pub.4543
ICES. 2019. Working Group on Elasmobranch Fishes (WGEF). ICES Scientific Reports. 1:25. 964 pp. http://doi.org/10.17895/ices.pub.5594
ICES. 2020. Spurdog Squalus acanthias in subareas 1-10, 12 and 14 (the Northeast Atlantic and adjacent waters). In Report of the ICES Advisory Committee, 2020. ICES Advice 2020, dgs.27.nea. https://doi.org/10.17895/ices.advice.5820.
Jones, T.S. and Ugland, K.I. 2001. Reproduction of female spiny dogfish, Squalus acanthias, in the Oslofjord. Fishery Bulletin 99: 685–690.
Nieto, A. et al. 2015. European Red List of marine fishes. Luxembourg: Publications Office of the European Union, iv + 81 pp.
OSPAR. 2010. Background Document for Spurdog or Spiny dogfish Squalus acanthias. OSPAR Commission, 17 pp.
Sosinski, J. 1978. Characteristics of the North Sea Spurdog (Squalus acanthias L.) Stock. Fish Biology 8: 9–22.
Thorburn, J., Neat, F., Bailey, D. M., Noble, L. R., and Jones, C.S. 2015. Winter residency and site association in the Critically Endangered North East Atlantic spurdog Squalus acanthias. Marine Ecology Progress Series. Vol. 526: 113–124.
Thorburn, J., Dodd, J., and Neat, F. 2018. Spatial ecology of flapper skate (Dipturus intermedius – Dipturus batis complex) and spurdog (Squalus acanthias) in relation to the Loch Sunart to the Sound of Jura Marine Protected Area and Loch Etive. Scottish Natural Heritage Research Report No. 1011.
