Status of the OSPAR Network of Marine Protected Areas in 2020
Policy Issue:
Protection of marine biodiversity and ecosystems
Policy Objective:
A network of marine protected areas (MPAs) should be established, which is ecologically coherent by 2012, includes sites representative of all biogeographic regions in the OSPAR maritime area, is consistent with the Convention on Biological Diversity (CBD) target for effectively conserved marine and coastal ecological regions, and is well managed by 2016.
Printable Version
Specific questions addressed
How extensive is the OSPAR Network of MPAs?
Is the network ecologically coherent?
Is the network well managed?
How are we progressing towards the CBD target?
Findings
Since 2005, all 12 Contracting Parties (CPs) bordering the North-East Atlantic have nominated sites to the OSPAR Network of MPAs both in their national waters as well as collectively in areas beyond national jurisdiction. By the end of 2020, the network comprises 552 MPAs with a total surface area of 874,127 km2 or 6.5 % of the OSPAR Maritime Area1.
Good coverage of the Territorial Waters
A total of 542 MPAs are situated within national waters of CPs. Most sites have been designated in territorial waters (19.3 % covered by OSPAR MPAs2,3) and far less in Exclusive Economic Zones (2.8 % covered by OSPAR MPAs). The OSPAR Maritime Area beyond the limits of national EEZs holds 10 OSPAR MPAs, covering 8.9 % of this area.
Distribution across the OSPAR Regions
OSPAR MPAs are currently distributed unevenly across the five OSPAR Regions (Figure 1). The Greater North Sea (Region II), the Celtic Seas (Region III) and the Wider Atlantic (Region V) are the best represented OSPAR Regions with 19.0 %, 17.1 % and 8.3 % coverage, respectively. While coverage of the Bay of Biscay and Iberian Coast (Region IV) is at 5.9 %, the Arctic Waters (Region I) show the lowest coverage with 1.9 % of the area being OSPAR MPAs.

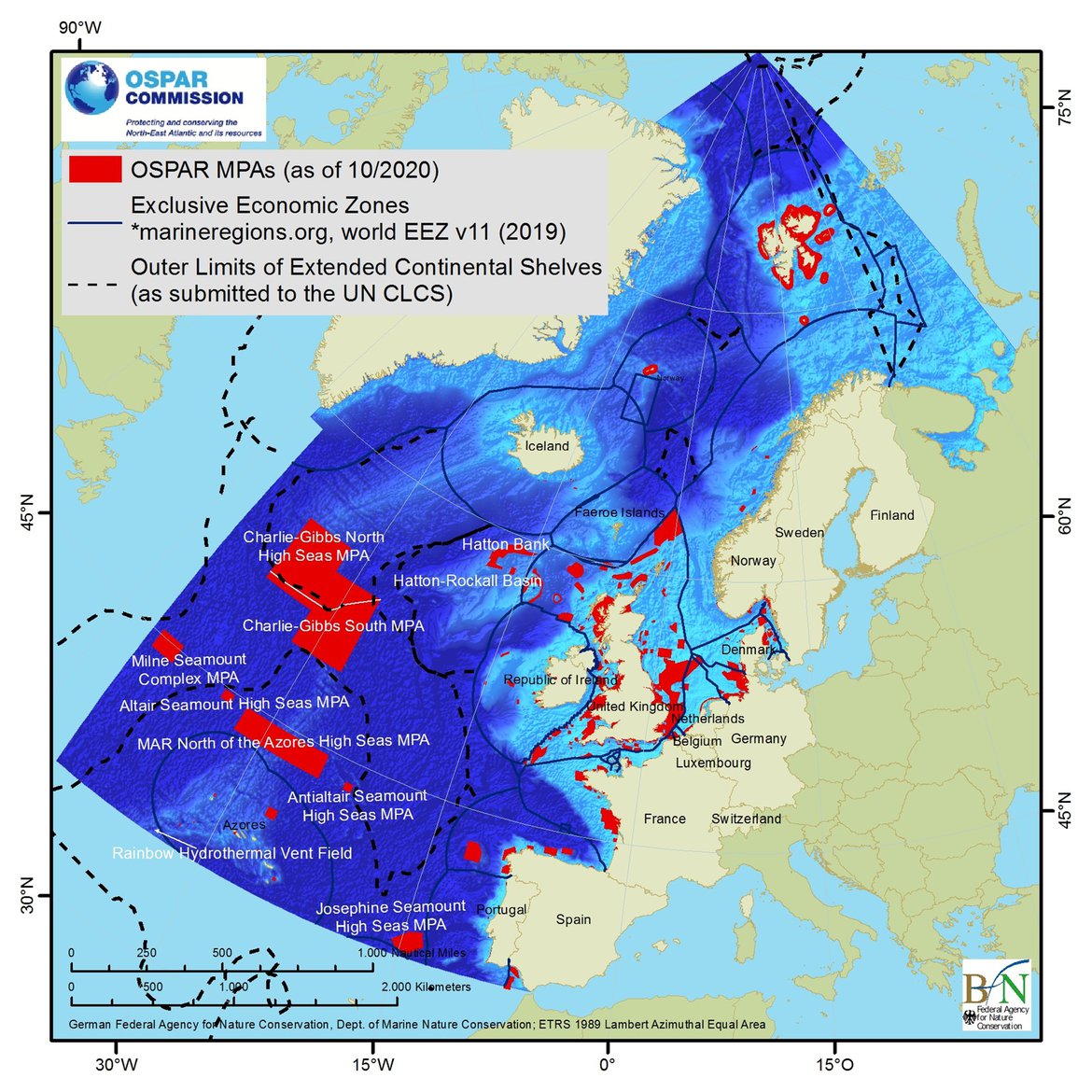

Figure 1: The OSPAR network of MPAs as of 1 October 2020.
Ecological coherence of the OSPAR Network of MPAs
Despite good progress, the OSPAR MPA network cannot yet be considered ecologically coherent. Although the OSPAR MPA network is well distributed in the Greater North Sea (Region II) and Celtic Seas (Region III), substantial gaps remain in particular in Arctic Waters (Region I) and the Wider Atlantic (Region V). Further work is also required to ensure that habitats and species considered by OSPAR to be at risk are adequately protected by MPAs where appropriate. However, the network has a good representation of several biogeographic regions within the North-East Atlantic, which is one of the requirements for ecological coherence (Table 1). Data deficiencies and the lack of a feasible methodology currently hamper a sophisticated eco-coherence assessment but efforts are being made to solve these issues.
| Benthic Dinter biogeographic provinces* | Percentage covered by MPAs (%) |
|---|---|
| Boreal | 22.7 |
| Lusitanean - cool | 16.8 |
| Lusitanean - Boreal | 16.7 |
| Norwegian Coast – Skagerrak | 13.9 |
| Boreal-Lusitanean | 13.0 |
| Barents Sea | 5.8 |
| High-Arctic Maritime | 1.4 |
*According to the classification by Dinter 2001 (Dinter, W. 2001. Biogeography of the OSPAR Maritime Area. German Federal Agency for Nature Conservation, Bonn, 167 pp).
Management of the OSPAR Network of MPAs
Appropriate management is in place for some OSPAR MPAs, but for many implementation is still required. As a result, only 14% of OSPAR MPAs are known to be moving towards or have achieved their conservation objectives. Thus, additional efforts to implement management measures necessary to achieve the conservation objectives of the protected features of OSPAR MPAs should be considered. In parallel, long-term monitoring programmes could be broadened to evaluate with greater confidence whether the conservation objectives of OSPAR MPAs are being achieved.
Countries have started also to implement management actions for OSPAR MPAs in Areas Beyond National Jurisdiction (ABNJ). In ABNJ, successful management also requires cooperation with international organisations with competence for the management of human activities, such as fishing, shipping and deep sea mining.
What has been done?
The status of the OSPAR Network of MPAs and any changes since 2019 have been assessed.
Observed status and/or change
In 2020, the United Kingdom nominated new MPAs. In total, 2 MPAs covering more than 890 km2 were added to the OSPAR Network of MPAs.
Does it work?
The OSPAR measure to establish a network of MPAs in the North-East Atlantic is progressing well in terms of MPA designation. Compared to the other three OSPAR Regions, The Greater North Sea and Celtic Sea Regions have reached the target set by the CBD, i.e. to protect at least 10 % of coastal and marine areas by 2020. Ecological coherence of the network, however, cannot be achieved unless the remaining gaps in the network are closed. One major challenge of assessing ecological coherence and management effectiveness is the paucity of relevant data on e.g., occurrence, distribution and status of species and habitats, and a common understanding about what constitutes effective management, respectively.
Implications - What happens next?
With a better understanding of the current state of ecological coherence and of management effectiveness, Contracting Parties can consider where additional MPAs need to be nominated to fill the identified gaps in the network and if management measures need to be adjusted to meet OSPAR objectives. Improved reporting of relevant data on species and habitats as well as on management is required to understand what is being protected and if it is being protected effectively. Such information is essential for understanding whether the taken OSPAR measures are having the intended outcome.
Assessment method guide, further reading and data sources
OSPAR Intermediate Assessment 2017
OSPAR (2019). 2018 Status Report on the OSPAR Network of Marine Protect Areas
OSPAR Recommendation 2003/3 adopted by OSPAR 2003 (OSPAR 03/17/1, Annex 9), amended by OSPAR Recommendation 2010/2 (OSPAR 10/23/1, Annex 7)
OSPAR (2013). An Assessment of the ecological coherence of the OSPAR Network of Marine Protected Areas in 2012. 31 March 2013; revised 7 May 2013 prepared by Johnson D., Ardron J., Billet D., Hooper T. and Mullier T. from Seascape Consultants Ltd.
Footnotes:
1 All areas were calculated using the Lambert Azimuthal Equal-Area Projection (European Terrestrial Reference System 1989).
2 For the calculation of the surface of TW and EEZ areas, Madeira (PT), Greenland and Faroe (DK) and other areas were included. Thus, the percentages are not directly comparable to previous assessment sheets.
3 “Joint Regime Areas” are included in area calculations for the first time, thus per cent area coverage of MPAs in territorial waters appears to have decreased compared to 2019. These “joint areas” or condominia were included in the latest available under
