Status Assessment 2023 - Intertidal Mytilus Edulis Beds on Mixed and Sandy Sediments
|Assessment of status||Distribution||Extent||Condition||Previous OSPAR status assessment||Status assessment|
Explanation to table:
Distribution, Population size, Condition
Trends in status (since the assessment in the background document)
↓ decreasing trend or deterioration of the criterion assessed
↑ increasing trend or improvement in the criterion assessed
←→ no change observed in the criterion assessed
chaos symbol demonstrating that the available information is pointing in all directions within the specific region
? trend unknown in the criterion assessed
Previous status assessment: If in QSR 2010 then enter Regions where species occurs (○) and has been recognised by OSPAR to be threatened and/or declining (●) based on Chapter 10 Table 10.2 and Table 10.3 . If a more recent status assessment is available, then enter ‘poor’/’good’
red – poor
green – good
? – status unknown
NA- Not Applicable
*applied to assessments of status of the feature or of a criterion, as defined by the assessment values used in the QSR 2023 or by expert judgement.
↓ key pressures and human activities reducing
↑ key pressures and human activities increasing
←→ no change in key pressures and human activities
? Change in pressure and human activities uncertain
Threats or impacts (overall assessment)
red – significant threat or impact;
green–no evidence of a significant threat or impact
Blue cells – insufficient information available
NA – not applicable
1 – direct data driven
2 – indirect data driven
3 – third party assessment, close-geographic match
4 – third party assessment, partial-geographic match
5 – expert judgement
|Assessment of threats||Habitat loss or degradation through physical damage *|
Diseases/neobiota, including the invasive Pacific oyster (Crassostrea gigas)
Habitat degradation through smothering & siltation
Removal of target species for fisheries and cascading effects on food-webs
Changes in genetic integrity
Change in tidal current regimes
Habitat loss or alteration caused by infrastructure development
Threat or impact (conclusion based on the above rows)
(↑ SE, NO)
Year added to OSPAR List: 2004 https://qsr2010.ospar.org/media/assessments/p00358_case_reports_species_and_habitats_2008.pdf
Key criteria that led to the listing:
- Decline: Significant declines in the extent and biomass of mussel beds have been reported in the OSPAR Area, particularly in Region II.
- Rarity: Intertidal beds are now rare in some parts of their former range in the Wadden Sea.
- Sensitivity: Mytilus edulis is tolerant to wide fluctuations in natural variables. Mussel beds are (potentially) affected by climate change, fisheries, non-indigenous species, phytoplankton blooms, excessive levels of silt and inorganic detritus and anthropogenic chemicals.
- Ecological significance: Mussel beds are important in sediment dynamics of coastal systems, as food source for birds and as habitat for a large number of species including serving as essential fish habitats.
- Key pressures affecting intertidal mussel beds are (QSR 2010): Climate changes; Hazardous substances; Oil pollution; Nutrient and organic enrichment; Habitat damage; and Habitat loss.
Last status assessment and brief outcome: In the UK, the species is considered to be overexploited, but not in actual decline. Mussel beds in the Wadden Sea showed a slow recovery or decline in the past 10 years, depending on the area (OSPAR Commission 2015a). https://www.ospar.org/documents?d=7376

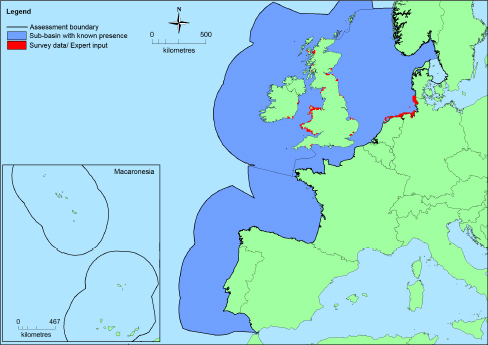

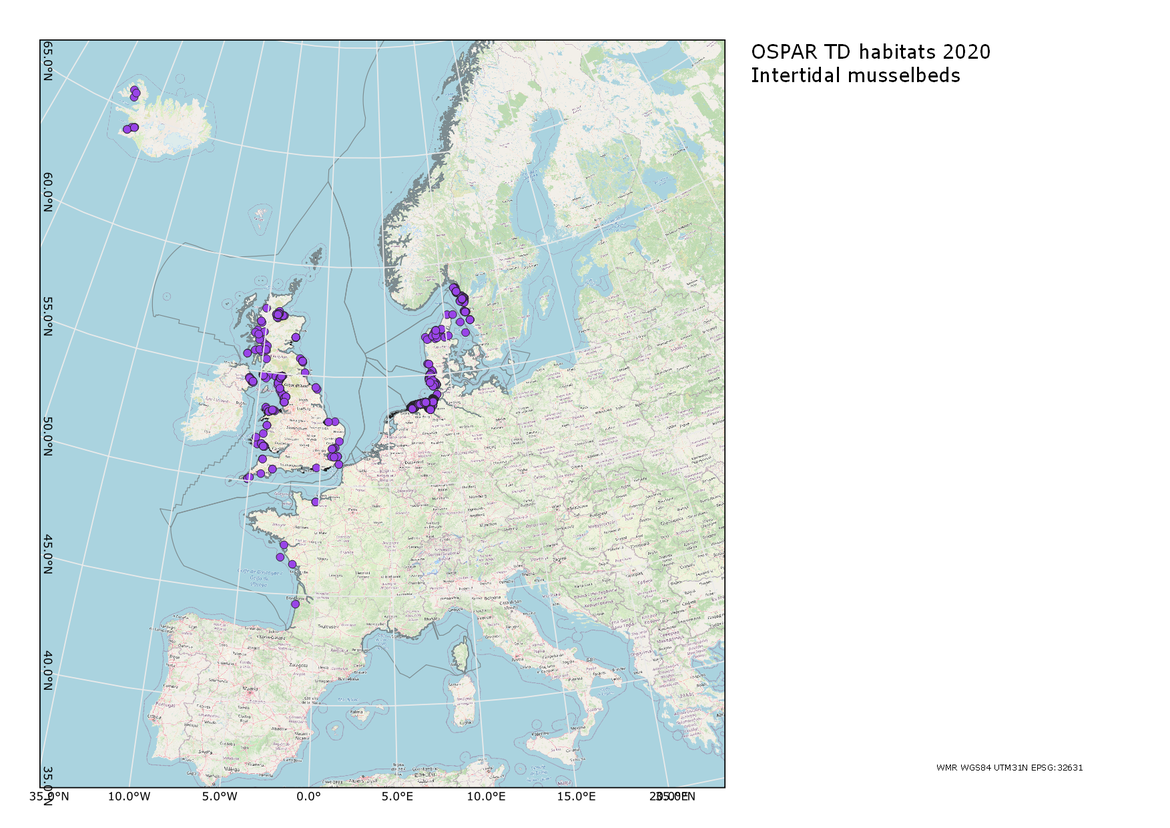

Geographical Range and Distribution
Intertidal Mytilus edulis beds on mixed and sandy sediments are specific to the OSPAR Maritime Area. The majority are found in the Wadden Sea area (Denmark, Germany, the Netherlands) and in UK waters, although they are also present along the coast of Iceland, Sweden and Ireland (OSPAR 2016).
Method of assessment: 1,2,3,4
In the Wadden Sea (Denmark, Germany, the Netherlands), this habitat has suffered from a significant decline in the extent and biomass, both historically and in recent decades (Gubbay & Dankers, 2016). In the German and Dutch part, systematic aerial and ground truthing surveys provide annual data. In Germany, an increase in the extent of mussel/oyster beds area was observed in recent years. In the Netherlands, the extent is now considered in a good state, with large variations.
For Denmark, no recent data are available. For UK waters, also few national monitoring data are available (Baden et al., 2021), although local declines are reported for Scotland (Cook et al., 2016). The overall decline over the last 50 years (NE Atlantic) is estimated to be >50% (Gubbay & Dankers, 2016; Baden et al., 2021) and the habitat is listed as endangered on the EU red list of habitats (Gubbay & Dankers, 2016). The extent in the EU28 (28 EU countries) is calculated to be 584 502 km2 (Gubbey & Dankers, 2016) (Figure 2).
Method of assessment: 1,2,3,4
The condition of mussel beds concerns e.g., the size, age and species composition. In the Wadden Sea, protection measures have enabled more natural development of mussel beds (Folmer et al., 2017). Half of the beds now consist of a mix of Pacific oysters and native blue mussels. In parts of the German Wadden Sea however, there are hardly any beds which consist only of mussels. There is nonetheless a great variation in dominance by either species. Oyster and mixed beds have a much lower hazard rate than pure mussel beds and can easily result in larger future beds (Van der Meer et al., 2019). In other areas in the Wadden Sea, and along the coast of e.g., south-east England and Kattegat (Sweden), mixed beds occur but with lower oyster abundances than in the Wadden Sea. The structure of mussel beds may also be affected by fishing away larger predators leading to increased predation by mussel-eating predators (Christie et al., 2020), especially crawling ones (Meister, 2022). In Norway and Sweden, no data on weakened mussel conditions are available, the mussel beds just decrease in distribution and in extent.
Method of assessment: 2,4
Threats and Impacts
The dominant reasons for the decline of Mytilus populations are overfishing of mussel banks (Wadden Sea, late 1980s) and climate change effects such as changes in temperature, salinity, extreme weather events, higher abundance of predators and infectious agents) (Baden et al., 2021). Other threats are pollution, trophic cascading effects due to overfishing and invasive species. Pacific oysters are a threat (competition for food) but also help increase the extent of mixed mussel/oyster beds by providing shelter.
Measures that address key pressures from human activities or conserve the species/habitat
OSPAR Recommendation 2015/1 (OSPAR Commission 2015b) includes 12 measures and actions to be implemented by the Contracting Parties. According to the implementation highlights (OSPAR 2016), the level of engagement was 75%, resulting in e.g.:
- Germany, Sweden, and the UK have national legislation in place;
- Denmark, France, Germany, Sweden, and the UK undertake monitoring programmes;
- Management measures are in place in Denmark, Germany, Netherlands, Sweden and the UK;
- MPAs have been designated in Denmark, Germany, Netherlands, Sweden, and the UK;
- Germany and the UK undertake awareness raising activities.
Specific measures are e.g., restriction of seabed disturbing fisheries including the transition of mussel seed harvesting from seabed to hanging cultures in the Wadden Sea.
Conclusion (including management considerations)
In Sweden mussel beds are declining. The only mussel bed in France, Region II, has disappeared after 2015. Within Scotland there have been multiple reports of declines in blue mussel populations. Management in the Dutch Wadden Sea has resulted in the removal of mussel fisheries. Currently, the extent and biomass of (mixed) mussel beds are stable. Maintaining the current protection measures is advised to allow natural development of mussel beds and mussel/oyster reefs. It would be advisable to reassess the status of this habitat in 6 years, and to invest in harmonised monitoring and data collection.
Brief knowledge gaps:
- Regular international harmonised monitoring of Mytilusspp, (including application of innovative techniques such as remote sensing by means of satellites and drones).
- Knowledge on the degree of hybridisation between Mytilusspp.
- Effects of climate change on interaction between mussels and birds, and on population variability of mussels and oysters.
- Knowledge on critical factors for recovery success, including of effects of protective refuges for plantigrade larvae, and effects of Pacific oyster on survival.
- Environmental Assessment Criteria for all heavy metals in mussels should be developed (OSPAR 2017).
Extended text Knowledge gaps:
Environmental Assessment Criteria for all heavy metals in mussels should be developed (OSPAR 2017).
Baden et al., (2021) define the following knowledge gaps:
- regularly monitoring the spatiotemporal distribution of Mytilusspp using internationally standardized programmes all over the North Atlantic is lacking.
- knowledge on the degree of hybridization between Mytilusspp. is lacking; hybridization is thoroughly investigated in many areas, but not, for example, in Sweden.
- for Mytilus larval stages, there is insufficient understanding of the degree of predation from invasive species such as Mnemiopsis and Crassostrea and to what extent the massive establishment of Crassostrea in the littoral zone has prevented new settlement of Mytilus.
- studies on the dependence of plantigrade larvae access to seagrass and suitable macroalgae are needed since these might constitute a protective refuge before final settlement on natural or various artificial substrates.
- in-depth studies on how climate change has affected the overall interaction between mussels and birds are essential to understand the impact on mussel populations.
- multidisciplinary studies will be of critical importance to identify factors responsible for the losses of Mytilus populations.
Wadden Sea QSR recommendations (Folmer et al., 2017):
- More systematic and trilateral harmonised monitoring of blue mussels and Pacific oysters is recommended, so that understanding and modelling of population dynamics and spatial distributions can be improved.
- Harmonisation may be supported by the application of innovative techniques such as remote sensing by means of satellites and drones.
- Include systematic monitoring of larvae and spat of blue mussels and Pacific oysters so that population variability and future response to climate change can be modelled.
- Improved knowledge of the interplay of the intertidal and subtidal populations is expected to help understand the development of both intertidal and subtidal populations.
- Adapt the data collection of mussel beds and oyster reefs such that it fits in the context of their current and future communities.
- More information of the role of fisheries and seals by removal of top predators leading to trophic cascading effects (such as mesopredator release) is also needed (Christie et al., 2020).
Assessment carried out by Wageningen Marine Research (Bos, Tamis) based upon:
a) a literature review and;
b) a questionnaire sent to experts from all relevant contracting parties
c) Additional comments of CPs
Andersen S, Grefsrud ES, Mortensen S et al. 2016. Meldinger om blåskjell some er forsvunnet – oppsummering for 2016. Rapport fra Havsforskningen 4-2017. Havsforskningsinstittutet. 11p https://www.imr.no/filarkiv/2017/03/hi-rapp_4-2017_blaskjell_sa.pdf/nb-no
Baden S, Hernroth B, Lindahl O (2021) Declining populations of mytilus spp. In north atlantic coastal waters-A swedish perspective. J Shellfish Res 40:269–296
Barnard S&, Strong J (2014) Reviewing, refining and identifying optimum aggregation methods for undertaking marine biodiversity status assessments.
Benabdelmouna A, Ledu C (2016) The mass mortality of blue mussels (Mytilus spp.) from the Atlantic coast of France is associated with heavy genomic abnormalities as evidenced by flow cytometry. J Invertebr Pathol 138:30–38.
Borja A, Elliott M, Andersen JH, Cardoso AC, Carstensen J, Ferreira JG, Heiskanen A-S, Marques JC, Neto JM, Teixeira H, Uusitalo L, Uyarra MC, Zampoukas N (2013) Good Environmental Status of marine ecosystems: What is it and how do we know when we have attained it? Mar Pollut Bull 76:16–27.
Borja A, Prins TC, Simboura N, Andersen JH, Berg T, Marques JC, Neto JM, Papadopoulou N, Reker J, Teixeira H, Uusitalo L (2014) Tales from a thousand and one ways to integrate marine ecosystem components when assessing the environmental status. Front Mar Sci 1.
CBS, PBL, RIVM W (2021) Areaal mossel- en oesterbanken in de Waddenzee, 1995 - 2020 (indicator 1559, versie 05, 15 februari 2021).
Christie H, Kraufvelin P, Kraufvelin L, Niemi N, Rinde E (2020) Disappearing Blue Mussels – Can Mesopredators Be Blamed? Front Mar Sci 7:1–8.
Collinson K, Gascoigne J, Löwenberg U (2016) Marine Stewardship Council ( MSC ) Public Certification Report Schleswig-Holstein blue shell mussel fishery On behalf of the Erzeugerorganisation Schleswig- Holsteinischer Muschelfischer e . V . Prepared by ME Certification Ltd.
Donker JJA, van der Vegt M, Hoekstra P (2015) Erosion of an intertidal mussel bed by ice- and wave-action. Cont Shelf Res 106:60–69.
Van den Ende D, Troost K, van Asch M, Perdon J, van Zweeden C (2018) Mosselbanken en oesterbanken op droogvallende platen in de Nederlandse kustwateren in 2018: bestand en arealen.
Van den Ende D, Troost K, Asch M van, Perdon J, Zweeden C van (2020) Mosselbanken en oesterbanken op droogvallende platen van de Nederlandse zoute getijdenwateren in 2019 : bestand en arealen. Stichting Wageningen Research Centrum voor Visserijonderzoek (CVO), Yerseke.
Folmer E, Büttger H, Herlyn M, Markert A, Millat G, Troost K, Wehrmann A (2017) Wadden Sea Quality Status Report Beds of blue mussels and Pacific oysters.
Gade M, Melchionna S (2016) Joint use of multiple Synthetic Aperture Radar imagery for the detection of bivalve beds and morphological changes on intertidal flats. Estuar Coast Shelf Sci 171:1–10.
Gade M, Melchionna S, Kemme L (2015) ANALYSES OF MULTI-YEAR SYNTHETIC APERTURE RADAR IMAGERY OF DRY-FALLEN INTERTIDAL FLATS. ISPRS - Int Arch Photogramm Remote Sens Spat Inf Sci XL-7/W3:941–947.
Gade M, Melchionna S, Kemme L (2016) SAR indicators for morphological changes and bivalve beds on intertidal flats. In: European Space Agency, (Special Publication) ESA SP. European Space Agency
Glorius ST, Meijboom A (2020) Ontwikkeling van enkele droogvallende mosselbanken in de Nederlandse Waddenzee. Situatie 2019.
Gubbay S, Dankers N (2016) A2.72: Mussel beds in the Atlantic littoral zone Summary. Eur Red List Habitats - Mar Habitat Gr:1–13.
Hansen JW, Høgslund S (Red. . (2021) MARINE OMRÅDER 2020. NOVANA.
Hennicke J, Blanchard S, Chaniotis P, Cornick L, Hauswirth M, Schellekens T, Vonk S, and Werner T (2022). Report and assessment of the status of the OSPAR network of Marine Protected Areas in 2021. In: OSPAR, 2023: The 2023 Quality Status Report for the North-East Atlantic. OSPAR Commission, London
Kraufvelin P, Bryhn A, Kling J, Olsson J, 2021. Fysisk påverkan i kusten och effekter på ekosystemen. Havs- och vattenmyndighetens rapport 2020:27, 213 s. (In Swedish)
Lemmen C (2018) North Sea Ecosystem-Scale Model-Based Quantification of Net Primary Productivity Changes by the Benthic Filter Feeder Mytilus edulis. Water 10:1527.
Meister N (2022) The role of crawling predators in the decline and distribution of blue mussels in Norwegian coastal waters. MSc-thesis, The University of Bergen, Norway.
Minister van Landbouw Natuur en Voedselkwaliteit (2020) Mosselconvenant / MZI-beleid 2021-2026. 1–2.
Mortensen S, Strohmeier T, 2018. Hvorfor forsvinner blåskjellene? https://www.imr.no/resources/Notat-Hvorfor-forsvinner-blaskjellene-pr-27-juli-2018.pdf (In Norwegian)
Müller G, Stelzer K, Smollich S, Gade M, Adolph W, Melchionna S, Kemme L, Geißler J, Millat G, Reimers H-C, Kohlus J, Eskildsen K (2016) Remotely sensing the German Wadden Sea—a new approach to address national and international environmental legislation. Environ Monit Assess 188:595.
Nielsen P, Geitner K, Jakobsen J, Köppl CJ, Petersen JK (2019) Fagligt grundlag for forvaltningsplan for udvikling af bæredygtige fiskerier af muslinger og østers i Vadehavet.
OSPAR (2019) 2018 Status Report on the OSPAR Network of Marine Protected Areas. OSPAR Comm London:1–80.
OSPAR (2017) Intermediate Assessment 2017.
OSPAR (2018) OSPAR CEMP Guideline Common indicator : Condition of benthic habitat communities ( BH2 ) – common approach. 1–60.
OSPAR (2016) OSPAR Threatened and/or Declining Species and Habitats Implementation Report. Habitat: Intertidal Mytilus edulis beds on mixed and sandy sediments.
OSPAR Commission (2015a) Background document on Intertidal Mytilus edulis beds on mixed and sandy sediments. Biodiversity and Ecosystem Series. OSPAR, London, UK.
OSPAR Commission (2015b) OSPAR Recommendation 2015/01 on furthering the protection and conservation of intertidal Mytilus edulis beds on mixed and sandy sediments in Regions II and III of the OSPAR maritime area. OSPAR 15/20/1, Annex 5. (https://www.ospar.org/documents?d=33048).
de Paoli H, van de Koppel J, van der Zee E, Kangeri A, van Belzen J, Holthuijsen S, van den Berg A, Herman P, Olff H, van der Heide T (2015) Processes limiting mussel bed restoration in the Wadden-Sea. J Sea Res 103:42–49.
Probst WN, Lynam CP (2016) Integrated assessment results depend on aggregation method and framework structure – A case study within the European Marine Strategy Framework Directive. Ecol Indic 61:871–881.
Reise K, Buschbaum C, Büttger H, Rick J, Wegner KM (2017) Invasion trajectory of Pacific oysters in the northern Wadden Sea. Mar Biol 164:68.
Saraiva S, Fernandes L, van der Meer J, Neves R, Kooijman SALM (2017) The role of bivalves in the Balgzand: First steps on an integrated modelling approach. Ecol Modell 359:34–48.
Sherratt JA, Mackenzie JJ (2016) How does tidal flow affect pattern formation in mussel beds? J Theor Biol 406:83–92.
Törnqvist O, Klein J, Vidisson B, Häljestig S, Katif S, Nazerian S, Rosengren M, Gilljam C, 2020. Fysisk störning i grunda havsområden - Kartläggning och analys av potentiell påverkanszon samt regional och nationell statistik angående störda områden. Havs- och vattenmyndighetens rapport 2020:12, 126 s. (In Swedish).
Troost K, Asch M Van, Brummelhuis E, Ende D Van Den, Es Y Van, Perdon KJ, Pool J Van Der (2021) Schelpdierbestanden in de Nederlandse kustzone, Waddenzee en zoute deltawateren in 2020.
wa Kangeri AK, Jansen JM, Joppe DJ, Dankers NMJA (2016) In situ investigation of the effects of current velocity on sedimentary mussel bed stability. J Exp Mar Bio Ecol 485:65–72.
Waser AM, Deuzeman S, Kangeri AK wa, van Winden E, Postma J, de Boer P, van der Meer J, Ens BJ (2016) Impact on bird fauna of a non-native oyster expanding into blue mussel beds in the Dutch Wadden Sea. Biol Conserv 202:39–49.
