Capture accessoire de marsouins communs

Introduction

Through its Working Group on Bycatch of Protected Species (WGBYC) the International Council for the Exploration of the Sea (ICES) collates and reviews data reported by Member States to the European Commission (under EC Regulation 812/2004), annually. These data also include data collected by monitoring schemes under Article 11 of the European Union Habitats Directive that are used to monitor ‘incidental capture’ (Article 12) and to assess marine mammal conservations status (Article 17). All data are requested by WGBYC in a standard format and collated in a bycatch database.

Observations of bycaught animals are collated over several years to ensure sufficient geographical coverage. The number of observed dead animals is divided by the number of days that fishing activity was observed, in order to produce a ‘bycatch rate’ (see below). Bycatch rate is then multiplied by the number of days fished by vessels in a specific area during the entire year, in order to produce an estimate of total annual bycatch for that section of the fleet.

Species

This indicator assessment focuses on bycatch of harbour porpoise (Phocoena phocoena) only. Of those cetacean species reported as bycatch by European Union Member States, harbour porpoise and short-beaked common dolphin (Delphinus delphis) are the most commonly bycaught species in the OSPAR Maritime Area (e.g. ICES, 2015b, 2016b). These species are the most abundant in the area and consequently, more data on their bycatch are available, compared to other species.

ICES also collated bycatch data on short-beaked common dolphin in parts of the Celtic Seas, Bay of Biscay and Iberian Coast and the Wider Atlantic (ICES, 2016a,b). They calculated bycatch rates for each of 11 fishing gear types (métier level 4, e.g. mid-water otter trawl, set gillnet, bottom pair trawl) in ICES Divisions VII, VIII and IX. Because ICES (2016a,b) did not estimate total annual bycatch (i.e. by multiplying bycatch rates by estimates of fishing effort for each gear type) it is not possible to provide comparable estimates of total annual bycatch for both species in this indicator assessment.

Bycatch Risk Assessment

A Bycatch Risk Assessment approach was adopted at a workshop to Evaluate Aspects of EC Regulation 812/2004 (WKRev812) in 2010 and further elaborated by ICES WGBYC in 2013 (ICES, 2013). The approach aims to “identify sea areas or fisheries that may pose the greatest threat to non-target species in the absence of reliable data that would be needed to quantify the bycatch of that species in a statistically rigorous manner”(ICES, 2015b).

The Bycatch Risk Assessment approach estimates the total annual bycatch of species in a region using the following parameters:

Total bycatch (number of animals caught) = fishing effort×bycatch rate

where:

Bycatch rate (number of animals caught per day) = total number of bycaught animals observed / number of observer days

and,

Fishing effort = number of days at sea (for relevant gear types)

ICES WGBYC pooled information on bycatch rates across years due to the patchiness of coverage of relevant fisheries in any one year (see below).

Fishing effort data were collated by the Scientific, Technical and Economic Committee for Fisheries (STECF) and others (see ICES, 2015b, 2016b).

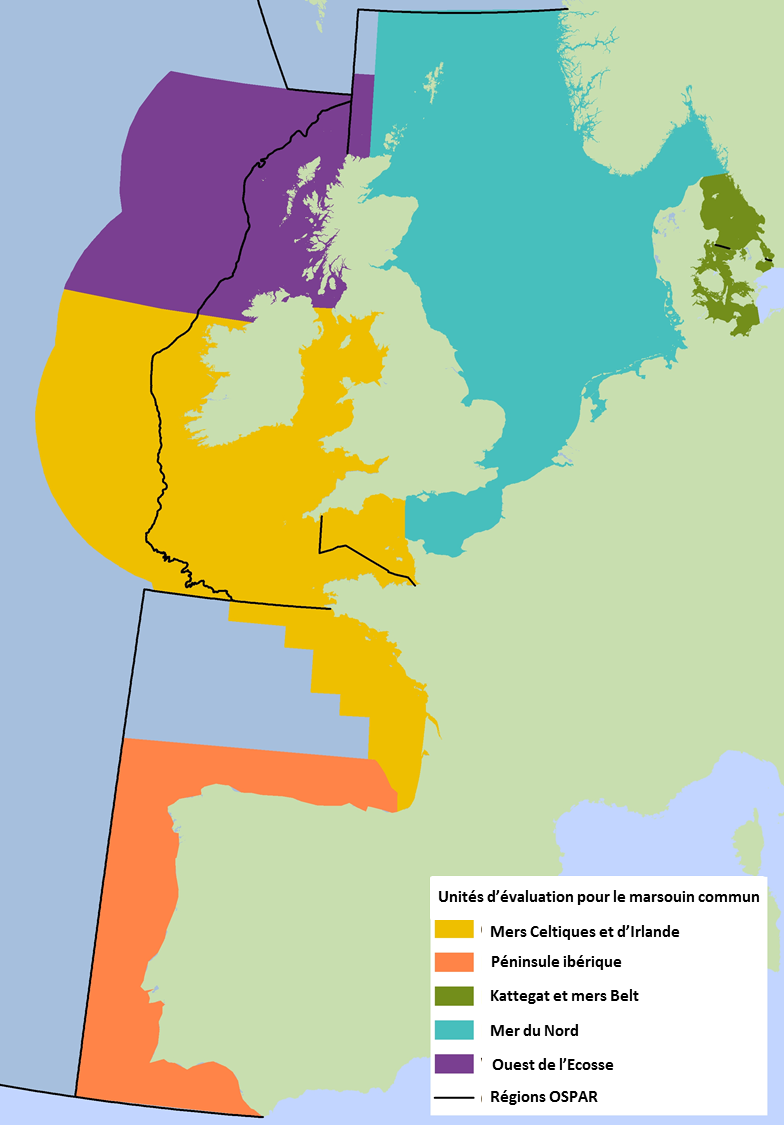

Harbour porpoise Assessment Units

ICES (2014) recommended to OSPAR five assessment units (AUs) for harbour porpoise. The boundaries of these AUs are mostly consistent with ICES Subarea/Division boundaries (Figure 1) with the exception of the boundary between the North Sea and the Kattegat:

North Sea AU: ICES Subarea IV, Division VIId, and part of Division IIIa (Skagerrak) (includes most of the Greater North Sea)

Kattegat and Belt Seas AU: Part of ICES Division IIIa (Kattegat) and Baltic Areas 22 and 23 (includes easternmost part of the Greater North Sea and the Belt Seas, of which the latter lie outside the boundary of the OSPAR Maritime Area)

Western Scotland and Northern Ireland AU: ICES Division VIa and Subdivision VIb2 (includes the northern half of the Celtic Seas)

Celtic Sea and Irish seas AU: ICES Subarea VII with the exception of Division VIId (includes southern half of the Celtic Seas and inshore waters of the French part of the Bay of Biscay and Iberian Coast; note that there are very few harbour porpoises in the deeper parts of the Celtic Seas and the Bay of Biscay and Iberian Coast)

Iberian Peninsula AU: ICES Divisions VIIIc and IXa (includes the Iberian coast in the Bay of Biscay and Iberian Coast).

Harbour porpoises are distributed throughout the Belt, Kattegat and Skagerrak seas, the shelf waters of the Greater North Sea, the Celtic Seas and the Bay of Biscay and Iberian Coast. Three distinct populations occur in this area:

• the Belt Sea population inhabiting the southern part of Kattegat Sea, the Belt Sea and the southwestern Baltic Sea during summer constitutes a separate population (Sveegaard et al., 2015)
• the greater North-East Atlantic / North Sea population including the northern Kattegat Sea and the Skagerrak Sea
• the Iberian coast population (Fontaine et al., 2007).

Thereby the AU of the Kattegat and Belt Seas is likely to contain a mix of two different populations (Sveegaard et al., 2015).

This assessment covers only three of the five AUs: the North Sea (covering most of the Greater North Sea, except the Kattegat); the Kattegat and Belt Seas (covering the Kattegat area of the Greater North Sea); the Celtic Seas and French part of the Bay of Biscay (Figure 1).

Harbour porpoise bycatch estimation

ICES WGBYC collated observer data for net fisheries (Métier level 3 - for fishing métier levels: see https://datacollection.jrc.ec.europa.eu/wordef/fishing-activity-metier) to calculate bycatch rates in three of the five ICES AUs for harbour porpoise (see ICES, 2015b, 2016b). Bycatch rates for the North Sea AU and the Celtic and Irish seas AU were calculated from observer data pooled over the period 2006–2013 (ICES, 2015b). More recent bycatch data collected with Remote Electronic Monitoring (videos on fishing boats) and pooled for the period 2010–2014 were used to estimate bycatch rates in the Kattegat and Belt Seas AU (ICES, 2016b). Within each ICES sub-Division, WGBYC calculated the 95% confidence interval around the estimated bycatch rate (for methodology see ICES, 2015b). Data per sub-Division were then aggregated to calculate an overall bycatch rate for each AU.

Fishing effort by fleets (total number of days at sea) was summarised in each AU: in 2013 for the North Sea, Celtic and Irish Seas and in 2014 for the Kattegat and Belt Seas. Data on fishing effort (i.e. days at sea) were collated across all ‘net’ level 4 métiers: trammel nets, set nets and driftnets, across all seasons and all vessel length categories.

The lower and upper 95% confidence limits of the bycatch rate were then multiplied by fishing effort to generate a range of possible annual bycatch totals for each AU.

The effort data and the observations of harbour porpoise bycatch cover a wide range of vessel types and fishing areas. In their estimation of bycatch rates and fishing effort, WGBYC stated that “no account was taken of any spatial heterogeneity or of differences in mesh sizes or other important gear characteristics. There is therefore an implicit assumption that the summarized observations are representative of the nature and diversity of the gillnet fisheries within each assessment region, and this is not likely to be true. For this reason a range of numbers has been used to highlight the uncertainty in the overall bycatch estimate within each assessment unit. This approach does not address several potential biases. An examination of these will require detail of the fleet structure and how the observations are stratified.”(ICES, 2015b).

Abundance estimates

To provide context, the estimates of total bycatch of harbour porpoise in each AU were compared against the best abundance estimate. The best estimates of abundance for harbour porpoise in the Greater North Sea is taken from preliminary analysis of the results from the Survey of small Cetaceans in the European Atlantic and North Sea (SCANS-III) survey conducted in July 2016 (Hammond et al., in prep). The best abundance estimate for the Celtic and Irish Seas AU is taken from the SCANS-II survey conducted in 2005 (Hammond et al., 2013). The estimate from SCANS III for the Celtic and Irish Seas AU is not complete.

Ireland was not involved in SCANS III as it undertook a comprehensive national survey (ObSERVE Programme) in the period 2015–2016. In the Kattegat and Belt Seas AU the estimate from SCANS III was used rather than the estimate from 2012 produced by Viquerat et al. (2014), while the estimates are very similar, the most recent estimate was chosen.

Marine mammal bycatch monitoring

During their review of bycatch reports by European Union Member States, the International Council for the Exploration of the Sea (ICES) found that monitoring of bycatch by observers on fishing vessels varies over space and time (ICES, 2015b). Monitoring of bycatch in set gillnets, trammel nets and drift nets (fishing métier level 4), the most lethal gear to harbour porpoise (Phocoena phocoena), is mandatory only on vessels over 15 m in length; yet the majority of vessels using these gear types in the North East Atlantic measure less than 15 m. There are also substantial amounts of recreational (i.e. non-commercial) netting that takes place in some countries that are not monitored for bycatch and effort. This results in bycatch estimates with unquantified bias and generally wide confidence intervals, which diminishes the confidence in reported impacts on population size.

ICES (2015a) concluded that more effective monitoring of bycatch, fishing effort and population sizes of cetaceans would be required to provide a quantitative assessment of the impact of bycatch on harbour porpoise and other cetacean species.

In 2016, Parties under the Agreement on the Conservation of Small Cetaceans of the Baltic, North East Atlantic, Irish and North Seas (ASCOBANS) adopted a resolution on the monitoring and mitigation of small cetacean bycatch. This aims to ensure that monitoring programmes are robust and able to generate estimates of cetacean bycatch for all relevant fisheries (this may include different vessel sizes, observers, remote electronic monitoring, rapid bycatch assessment methods and other measures as appropriate). The resolution also addresses the development, implementation and evaluation of appropriate technical and other measures to mitigate cetacean bycatch (and may include alternative fishing methods that are ecologically sustainable, pingers not audible to seals and alerting devices proven to be effective for appropriate mitigation, or gear exchange schemes aimed at reducing bycatch). European Union regulations on cetacean bycatch (EC/812/2004) require the use of acoustic deterrents but only on certain commercial fishing vessels operating in specified areas and times of year.

To provide total bycatch estimates whatever the vessel length and métier, a new method using strandings and their likely origin at sea was implemented to assess small cetacean bycatch (see Peltier et al., 2016). Use of different complementary data sources constitutes an efficient way to estimate cetacean bycatch. For example: observer programmes on large vessels to understand the specificity of interactions between mega-vertebrates and fisheries; rapid by-catch assessment carried out for evaluating cetacean bycatch and specific interactions on smaller vessels and artisanal fisheries (Poonian et al., 2008; Moore et al., 2010; Goetz et al., 2015; Oliveira et al., 2015); and the interpretation of stranding data, in order to evaluate the impact of fisheries on cetaceans at the population scale. It should be noted that remote electronic monitoring using onboard cameras provides a reliable alternative to observers. This method applies to large- and medium-sized vessels (Kindt-Larsen et al., 2012; ICES, 2015b, 2016b).

Common dolphin (Delphinus delphis) bycatch estimates were calculated from strandings since 1990 (Peltier et al., 2016). Estimations are in progress for harbour porpoises in the Greater North Sea, south of the Celtic Seas and the Bay of Biscay. Such total bycatch estimates from strandings could therefore be included during the further development of this indicator.

Assessment values

Owing to uncertainly concerning the reliability of the fishing effort data and the potential for biases in the bycatch data, this assessment does not compare the ICES bycatch estimates with assessment values used by the OSPAR North Sea Ecological Quality Objective (EcoQO) for bycatch of harbour porpoise. ICES has suggested that fishing effort could be more accurately recorded using measures of ‘net meter per day’. This, or a similar metric could more precisely record fishing effort than ‘days at sea’, for net types (e.g. set gillnets) that are more likely to catch harbour porpoise than mobile gear (e.g. trawls). Information on net length and soak time are rarely reported in fishing effort statistics.

ASCOBANS currently recommends that ‘total anthropogenic removal’ of harbour porpoises should not exceed more than 1.7% of the best available estimate of abundance (‘environmental limit’). This would ensure that population size is maintained at or restored to at least 80% of carrying capacity. If available evidence suggests that a population is severely reduced, or in the case of species other than the harbour porpoise, or where there is significant uncertainty in parameters such as population size or bycatch levels, then ‘unacceptable interaction’ may involve an anthropogenic removal of much less than 1.7%. ‘Total anthropogenic removal’ includes mortality resulting from all pressures caused by human activities, such as ship strikes and pollution as well as bycatch. An ASCOBANS resolution explicitly linked to harbour porpoise bycatch states that "total anthropogenic removal is reduced by the Parties to below the threshold of ‘unacceptable interactions’ with the precautionary objective to reduce bycatch to less than 1% of the best available abundance estimate and the general aim to minimise bycatch (i.e. to ultimately reduce to zero)” (ASCOBANS, 2006, 2016). Indirect mortality due to other pressures is more difficult to identify and measure, compared to mortality caused by bycatch. Overall, the number of cetaceans being killed by human activities could be more than the number estimated as bycatch.

The ASCOBANS value of 1.7% of the best available abundance estimate is derived from work undertaken by a working group convened by the International Whaling Commission and ASCOBANS (IWC, 2000). However, there has been much debate surrounding the nature of the population model used to arrive at this value. This was a very simple deterministic population dynamics model, which assumed a ‘biological’ population with independent population dynamics and no uncertainties in any parameter. Although assessment units (AUs) have been defined for harbour porpoise, there is little evidence to support the assumption that the population dynamics of animals within each AU are independent. Consequently, where the population dynamics are not independent, the management limits calculated on the basis of independent biological populations are unlikely to be appropriate. An alternative to such an approach is the bycatch management procedures (adapted Catch Limit Algorithm (CLA) approach) developed under the Small Cetaceans in the European Atlantic and North Sea; SCANS-II and Cetacean Offshore Distribution and Abundance in the European Atlantic; CODA projects (Winship, 2009).

In 2009, ICES advised the European Commission“that a Catch Limit Algorithm approach is the most appropriate method to set limits on the bycatch of harbour porpoises or common dolphins. In order to use this (or any other) approach, specific conservation objectives must first be specified. In both species improved information on bycatch and the biology of the species would improve the procedure.” (ICES, 2009). In 2010, ICES again advised the European Commission that “ICES advised in 2009 of the need for explicit conservation and management objectives for managing interactions between fisheries and marine mammal populations. This advice has not been acted upon. Lacking these objectives, ICES is unable to properly consider the impacts of these interactions in its management advice” (ICES, 2010). The ICES Working Group on Marine Mammal Ecology noted again (ICES, 2013) that this advice still had not been acted upon and, to aid such decisions, suggested that ASCOBANS be asked to consider the policy decisions required for the setting of safe bycatch limits. This discussion has started within ASCOBANS, with two related workshops having been held in 2015 (ASCOBANS 2015a,b), and at least one more planned.

Overlap of harbour porpoise populations in the Kattegat

The northern part of the Kattegat and Belt Seas AU is occupied by harbour porpoise from two genetically distinct populations – the North Sea population and the Kattegat/Belt Seas population (Sveegaard et al., 2015). Abundance estimates in the North Sea AU will underestimate the size of the North Sea population and abundance estimates in the Kattegat and Belt Seas AU will overestimate the size of the Kattegat and Belt Seas population. For the North Sea population, this error is probably less significant than for the much smaller Kattegat and Belt Seas population. Animals from both populations are at risk of being bycaught in each other’s AUs. Reported bycatch numbers in the northern Kattegat cannot be reliably assigned to one population or the other. Tissue samples to be taken from bycaught animals and advanced genetic techniques would make it possible to assign bycatch in the Kattegat and eastern North Sea to one of the two populations present.

ASCOBANS 2015a. ASCOBANS Expert Workshop on the Requirements of Legislation to Address Monitoring and Mitigation of Small Cetacean Bycatch, January 2015, Bonn, Germany (http://www.ascobans.org/sites/default/files/document/AC22_Inf_4.1.a_Report_ExpertWorkshop_EUBycatchLegislation.pdf)

ASCOBANS 2015b. ASCOBANS Workshop on Further Development of Management Procedures for Defining the Thresholds of Unacceptable Interactions, July 2015, London, United Kingdom (http://www.ascobans.org/sites/default/files/document/AC22_Inf_4.1.c_WS_UnacceptableInteractions_I_2015_Report.pdf)

Bjørge, A. Skern-Mauritzen, M. and Rossman, M.C. 2013. Estimated by catch of harbour porpoise (Phoceona phocoena) in two coastal gill net fisheries in Norway, 2006-2008. Mitigation and implications for conservation. Biological Conservation 161: 164-173

Fontaine, M.C., Tolley, K.A., Siebert, U., Gobert, S., Lepoint, G., Bouquegneau, J.-M., Das, K., 2007. Long-term feeding ecology and habitat use in harbour porpoises Phocoena phocoena from Scandinavian waters inferred from trace elements and stable isotopes. BMC Ecol. 7, 1.

Goetz,  S.,  Read,  F.L.,  Ferreira,  M.,  Portela,  J.M.,  Santos,  M.B.,  Vingada,  J.,  Siebert,  U.,Marçalo,  A.,  Santos,  J.,  Araújo,  H.,  Monteiro,  S.,  Caldas,  M.,  Riera,  M.,  Pierce,  G.J.,2015.  Cetacean  occurrence,  habitat  preferences  and  potential  for  cetaceanfishery  interactions  in  Iberian  Atlantic  waters:  results  from  cooperativeresearch  involving  local  stakeholders.  Aquat.  Conserv.  Mar.  Freshw.  Ecosyst.  25, 138–154.  doi:http://dx.doi.org/10.1002/aqc.2481.

Hammond, P.S,  Macleod, K.,  Berggren, P., Borchers, D., Burt, L., Cañadas, A., Desportes, G., Donovan,  G. P. , Gilles, A., Gillespie, D., Gordon, J., Hiby, L., Kuklik, I., Leaper, R; Lehnert, K., Leopold, M., Lovell, P.;  Øien, N., Paxton, C. G., Ridoux, V., Rogan, E., Samarra, F., Scheidat, M., Sequeira, M., Siebert, U., Skov, H.,  Swift, R., Tasker, M. L., Teilmann, J., Van Canneyt, O., and Vázquez, J. A. 2013. Cetacean abundance and distribution in European Atlantic shelf waters to inform conservation and management. Biological Conservation 164: 107–122

ICES 2009. New information on impact of fisheries on components of the ecosystem. ICES Advice 2009, Book 1, 1.5.1.3; Advice Northeast Atlantic and adjacent seas.

ICES 2010. EC request on cetacean bycatch Regulation 812/2004, Item 3. ICES Advice 2010, Book 1, 1.5.1.5. Special Request Advice October 2010.

ICES 2013. Report of the Working Group on Marine Mammal Ecology (WGMME), February 4-7, Paris, France. ICES CM 2013/ACOM:26. 117 pp.

ICES 2014. OSPAR request on implementation of MSFD for marine mammals. In Report of the ICES Advisory Committee, 2014. ICES Advice 2014, Book 1, Section 1.6.6.1.

ICES 2015a. Bycatch of small cetaceans and other marine animals – Review of national reports under Council Regulation (EC) No. 812/2004 and other published documents. ICES Advice 2015, Book 1, 1.6.1.1; Advice Northeast Atlantic and adjacent seas Published 15 April 2015. http://www.ices.dk/sites/pub/Publication%20Reports/Advice/2015/2015/Bycatch_of_PETS_Advice_2015.pdf

ICES 2015b. Report of the Working Group on Bycatch of Protected Species (WGBYC), 2–6 February 2015, Copenhagen, Denmark. ICES CM 2015/ACOM:26. 77 pp.

ICES 2016a. Bycatch of small cetaceans and other marine animals – Review of national reports under Council Regulation (EC) No. 812/2004 and other published documents. ICES Advice 2016, Book 1, 1.6.1.1; Advice Northeast Atlantic and adjacent seas Published 15 April 2016. http://www.ices.dk/sites/pub/Publication%20Reports/Advice/2016/2016/Bycatch_of_PETS_Advice_2016.pdf

ICES. 2016b. Working Group on Bycatch of Protected Species (WGBYC), 1–5 February 2016, ICES HQ, Copenhagen, Denmark. ICES CM 2016/ACOM:27. 82 pp.

IWC  (International Whaling Commission) (2012) Report of the Scientific Committee, 2012. PanamaCity, Panama. " Bycatch is the major source of anthropogenic mortality and should be monitored and mitigated"

IWC, 2000. Report of the IWC-ASCOBANS Working Group on harbour porpoises. Journal of Cetacean Research and Management 2 (supplement): 297-305. IWC (2004). Report of the Scientific Committee. Journal of Cetacean Research and Management (supplement) 6: pp12-13; 88-89; 171-183.

Moore,  J.E.,  Cox,  T.M.,  Lewison,  R.L.,  Read,  A.J.,  Bjorkland,  R.,  McDonald,  S.L.,  Crowder,L.B.,  Aruna,  E.,  Ayissi,  I.,  Espeut,  P.,  Joynson-Hicks,  C.,  Pilcher,  N.,  Poonian,  C.N.S.,Solarin,  B.,  Kiszka,  J.,  2010.  An  interview-based  approach  to  assess  marine mammal  and  sea  turtle  captures  in  artisanal  fisheries.  Biol.  Conserv.  143,  795–805

Oliveira,  N.,  Henriques,  A.,  Miodonski,  J.,  Pereira,  J.,  Marujo,  D.,  Almeida,  A.,  Barros,N.,  Andrade,  J.,  Marçalo,  A.,  Santos,  J.,  Oliveira,  I.B.,  Ferreira,  M.,  Araújo,  H.,Monteiro,  S.,  Vingada,  J.,  Ramírez,  I.,  2015.  Seabird  bycatch  in  Portuguese mainland  coastal  fisheries:  an  assessment  through  on-board  observations  and fishermen  interviews.  Glob.  Ecol.  Conserv.  3,  51–61.  doi:http://dx.doi.org/10.1016/j.gecco.2014.11.006

Peltier, H., Authier, M., Deaville, R., Dabin, W., Jepson, P. D., Van Canneyt, O., Daniel, P. and Ridoux, V. 2016. Small  cetacean  bycatch  as  estimated  from  stranding  schemes:  The common  dolphin  case  in  the  northeast  Atlantic. Environmental Science and Policy 63, 7-18.

Sveegaard, S., Galatius, A., Dietz, R., Kyhn, L., Koblitz, J. C., Amundin, M., Nabe-Nielsen, J., Sinding, M. H. S., Andersen, L. W., and Teilmann, J. 2015 Defining management units for cetaceans by combining genetics, morphology, acoustics and satellite tracking. Global Ecology and Conservation 3, 839-850.

Sveegaard, S., Teilmann, J., and Galatius, A. 2013 Abundance survey of harbour porpoises in Kattegat, Belt Sea, and the western Baltic, July 2012. In , pp. 1-12.Viquerat, S., Herr H., Gilles A., Peschko V., Siebert U., Sveegaard S., Teilmann, J (2014). Abundance of harbour porpoises (Phocoena phocoena) in the western Baltic, Belt Seas and Kattegat. Marine Biology 161(4): 745-754.

von Benda-Beckmann, A. M., Aarts, G., Sertlek, Ö., Lucke, K., Verboom, W. C., Kastelein, R. A., Ketten, D. R., van BemmelenR., Lam, F. P. A., Kirkwood, R. and Ainslie, M. A. 2015. Assessing the Impact of Underwater Clearance of Unexploded Ordnance on Harbour Porpoises (Phocoena phocoena) in the Southern North Sea. Aquatic Mammals 41, 503-523.

Winship, A.J., 2009. Estimating the impact of bycatch and calculating bycatch limits to achieve conservation objectives as applied to harbour porpoise in the North Sea. PhD thesis, University of St Andrews, UK. Available from: http://research-repository.st-andrews.ac.uk/handle/10023/715
