Pilot Assessment of Mean Maximum Length of Fish

D1 - Biological Diversity

D1.7 - Ecosystem Structure

This pilot assessment measures the change in species composition as determined by the mean maximum length of each species, which is assumed to represent their vulnerability to additional (often fishing-related) mortality. There is no consistent pattern across the assessed regions but there are often distinct changes over time within regions.

Area Assessed

Printable Summary

Background

Fishing mortality constrains the age structure of fish communities, reducing the proportion of larger / older individuals. Fishing is also size-selective, preferentially removing larger / older fish, and therefore affects fish community size composition. For the Intermediate Assessment 2017, three assessments relating to fish size have been developed to assess impacts of fishing on fish communities and the food web, considering parameters showing different responses in the ecosystem.

Maximum length (Figure 1) is one of the life-history characteristics that determine species vulnerability to additional mortality. This life-history characteristic is chosen because the assumption is that species known to grow to a large maximum length, also reproduce late and so are exposed for longer to pressures affecting the fish community compared to other fish species. Because they are exposed for longer such species are expected to be the first to decline if this pressure is high. This parameter was selected to represent vulnerability, as it is based on data that are widely available.

A decline in mean maximum length indicates that the abundance of the most vulnerable fish and elasmobranch species is decreasing, with a subsequent loss in species diversity.

The indicator is calculated using catch data from scientific surveys. These are standardised monitoring programmes that occur each year in the same period taking representative samples according to specific guidelines. Different components of the fish community are distinguished based on their feeding behaviour using habitat-based trophic guilds: namely, demersal communities (species living near the seafloor) and pelagic communities (species living only in the water column).

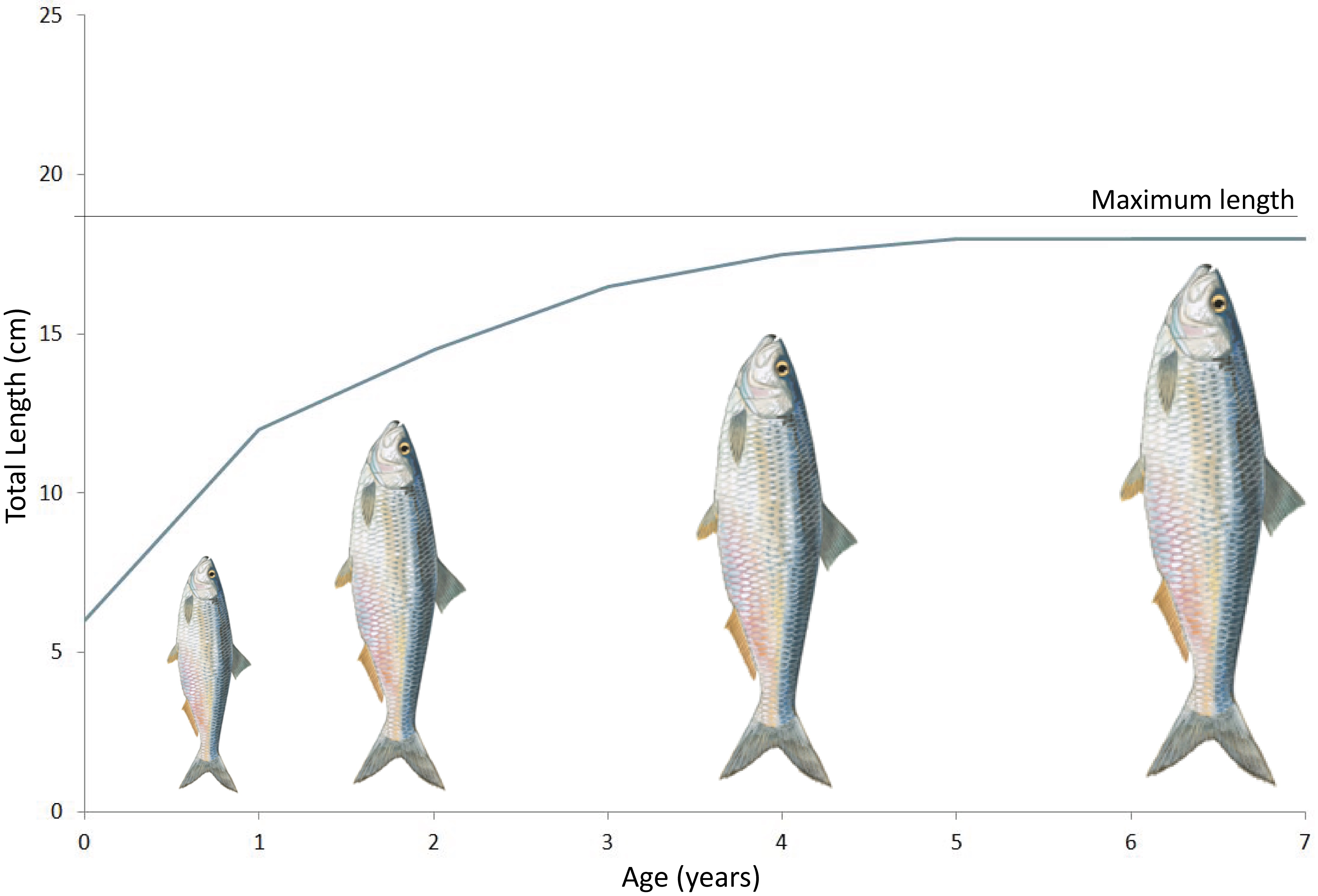

Figure 1: Maximum length based on the von Bertalanffy growth curve

The intensive exploitation of marine fish has led to substantial reductions in the abundance of some target species (Myers et al., 1996) and changes in the structure and species composition of fish communities (Greenstreet and Hall, 1996). Specifically, large or slow-growing species with late maturity (Adams, 1980; Roff, 1984; Kirkwood et al., 1994) often decline in abundance more rapidly than their smaller and faster-growing counterparts. Indeed, many large or slow-growing species have become scarce following intensive exploitation, even when they are not primary targets of the fishery (Brander, 1981; Vince, 1991; Walker and Heessen, 1996; Jennings and Kaiser, 1998; Sutherland and Reynolds, 1998). It was only after Jennings et al. (1998) performed an analysis based on phylogenetic comparisons that it became evident that the differential effects of fishing on individual species were driven by their contrasting life histories because these eliminate many spurious differences among unrelated taxa (Harvey, 1996).

Jennings et al. (1999) showed that examination of a relatively simple component of life history, such as maximum length, can indicate the response to fishing. Thus, an a priori prediction of the susceptibility of fish species (exploited and unexploited) can be made using data that are widely available and without recourse to complex studies of population dynamics.

Maximum length as used for this indicator is represented by the maximum size as observed in the assessed surveys, which seems to be closely correlated with the asymptotic length (Lor Linf) as emerges from the von Bertalanffy growth curve (von Bertalanffy, 1957) (Figure 1). The indicator is calculated for sub-divisions appropriate to communities and pressures that can be localised and aggregated at the regional scale (in this case aligning with the sub-regions defined for the European Union Marine Strategy Framework Directive (MSFD)).

Pertaining to the issue of redundancy with the other fish indicators, the mean maximum length indicator should complement the large fish indicator because the mean maximum length indicator reflects change in species composition while the large fish indicator reflects change in size structure. This was confirmed by Greenstreet et al. (2012) showing that the mean maximum length indicator correlates with another species composition indicator (i.e. biodiversity evenness metrics). Some overlap can be expected with the indicator on Recovery in the Population Abundance of Sensitive Fish Species as this suite is selected based on their sensitivity to fishing determined by life-history parameters that are strongly correlated with maximum length (ICES, 2016). However, because the mean maximum length indicator reflects change in relative biomass within the fish community, it is complementary to measures of absolute species abundance arising from sensitive species or functional guilds.



Mean maximum length (shown as MML in the equation below) can be calculated for the entire assemblage caught by a particular gear or a subset based on morphology, behaviour or habitat preferences (e.g. bottom-dwelling species only). Mean maximum length is calculated (ICES, 2012) as:

where Lmax j is the maximum length obtained by species j, Bj is the biomass of all individuals of species j and B is the total biomass of all individuals.

Data for this indicator come from scientific fisheries surveys, which ideally sample the entire fish community but in practice do not. Every survey can be expected to sample a survey-specific subset of the community often referred to as an assemblage. The indicator requires that each survey is conducted at regular intervals (e.g. annually) in the same area with a standard gear. Sufficiency of sample sizes can be judged using re-sampling techniques (Shephard et al., 2012). The number of individuals per species is not always recorded directly by surveys, but may be based on samples with certain detection error (including false negatives specifically for rare species). The detection error is further complicated by differing catchabilities over length classes and species, such that the observed relative abundance between species (and size-classes) is survey-specific. Where available, catchability estimates can be used to correct for this component of the systematic measurement error (e.g. Fraser et al., 2007; Walker et al., 2017). However, such estimates are sparse in the scientific literature and are prone to great uncertainty. Alternatively, model-based estimates of absolute species abundance can be used to rescale observed abundances, but here model uncertainty is also great (ICES, 2014). For simplicity the mean maximum length indicator is therefore calculated as a survey-specific indicator without any correction for detection error (i.e. catchability). This implies that every survey-specific indicator may provide a slightly different perspective to the reality they are supposed to represent. This indicator is calculated by survey and, where possible, also for sub-divisional strata that are assumed to represent different habitats and communities.

The data are collected under national programmes and the data collection framework. Currently, the most important data source for mean maximum length are those groundfish surveys that are coordinated by the International Council for the Exploration of the Sea (ICES). The International Bottom Trawl Survey (IBTS) programme in the Greater North Sea, the Celtic Seas, Bay of Biscay and Iberian Coast is particularly important since the trawl is a general-purpose design aimed at catching demersal and pelagic species. However, beam trawl surveys are more efficient at catching benthivorous species (such as sole, Soleidae) and acoustic surveys, supplemented with pelagic trawling, are more suitable for pelagic species (such as mackerel Scombridae) and time series of mean maximum length from such surveys may be preferable.

Data Used and Quality Assurance

This assessment draws on raw data from the ICES database of trawl surveys (DATRAS, www.ices.dk/marine-data/data-portals/Pages/DATRAS.aspx). These data have been quality controlled within OSPAR to generate a data product for assessment purposes. Time series of mean maximum length for fish and elasmobranchs are derived from each available groundfish and beam trawl survey, where the community is separated into demersal and pelagic habitat-based feeding guilds.

Time-series of mean maximum length by guild were determined for 20 groundfish surveys carried out across four separate regions: the Greater North Sea, Celtic Seas, Bay of Biscay and Iberian Coast, and the Wider Atlantic (Table a). Ecological sub-divisions were determined for the Greater North Sea using a simplification of those strata proposed by the European Union financed project Towards a Joint Monitoring Programme for the North Sea and Celtic Sea (JMP NS/CS) that took place in 2013, and building upon work in the European Union VECTORS project (Vectors of Change in European Marine Ecosystems and their Environmental and Socio-Economic Impacts) that examined the significant changes taking place in European seas, their causes, and the impacts they will have on society. In other OSPAR regions, the strata from the survey design were considered appropriate to represent the ecological sub-divisions.

Standard data collected on these surveys comprise numbers of each species of fish sampled in each trawl sample, measured to defined length categories (i.e. 1 cm below, so a fish with a recorded length of 14 cm would be between 14.00 and 14.99 cm in length). By dividing these species catch numbers-at-length by the area swept by the trawl on each sampling occasion, the catch data are converted to standardised estimates of fish density-at-length (referred to below as catch-per-unit-area, CPUA), by species, at each sampling location.

Summing these trawl-sample species density-at-length estimates across all trawl samples collected within each sampling stratum in each year (i.e. survey-specific strata following the survey design, which is the ICES ‘statistical rectangles’ in the Greater North Sea and generally depth-based strata elsewhere).

Table a: Groundfish and beam trawl surveys, the region in which they operate, and the period over which they have been undertaken
Subregion Survey Acronym¹ Survey Period
Bay of Biscay and Iberian Coast BBIC(n)SpaOT4 1990 – 2014
BBIC(s)SpaOT1 1993 – 2014
BBIC(s)SpaOT4 1997 – 2014
BBICPorOT4 2002 – 2014
CSBBFraOT4² 1997 – 2015
Celtic Seas CSFraOT4² 1997 – 2015
CSEngBT3 1993 – 2015
CSIreOT4 2003 – 2015
CSNIrOT1 1992 – 2015
CSNIrOT4 1992 – 2015
CSScoOT1 1985 – 2016
CSScoOT4 1995 – 2015
Greater North Sea GNSEngBT3 1990 – 2015
GNSFraOT4 1988 – 2015
GNSGerBT3 2002 – 2015
GNSIntOT1 1983 – 2016
GNSIntOT3 1998 – 2016
GNSNetBT3 1999 – 2015
Wider Atlantic WAScoOT3 1999 – 2015
WASpaOT3 2001 – 2014

1. Survey acronym convention: First 2 to 4 capitalised letters indicate the OSPAR Region (BBIC: Bay of Biscay and Iberian Coast; CS: Celtic Seas; GNS: Greater North Sea; WA – Wider Atlantic). Next capitalised and lowercase letters signify the country involved (Spa: Spain; Por: Portugal; Fra: France; Eng: England; Ire: Republic of Ireland; NIr: Northern Ireland; Sco: Scotland; Ger: Germany; Int: International; Net: The Netherlands. International refers to the two international bottom trawl surveys carried out in the Greater North Sea under the International Council for the Exploration of the Sea (ICES). In the Bay of Biscay and Iberian Coast region, Spanish surveys are further delimited by (n) for surveys operating in the northern Iberian coast area and (s) for surveys operating in the southern Iberian coast area. Next two capitalised letters indicate the type of survey (OT: otter trawl; BT: beam trawl). Final number indicates the season in which the survey is primarily undertaken (1: January to March; 3: July to September; 4: October to December).

2. This is a single survey that operates across both the Celtic Seas and the Bay of Biscay and Iberian Coast regions, from the southern coast of the Republic of Ireland and down the western Atlantic coast of France. For indicator assessment purposes, this single survey was split into its two regional components.

Data Treatment

Surveys with Rectangular Sampling Grids (GNSIntOT1, GNSIntOT3, GNSNetBT3, GNSGerBT3, GNSFraOT4)

Catch-per-unit-area (CPUA) data (kg/km2) from multiple hauls are averaged by species for each rectangular grid cell. In the Greater North Sea these are ICES statistical rectangles, in the eastern Channel a mini-grid 0.25° × 0.25° is used by GNSFraOT4.

The resulting rectangle-based CPUA estimates are multiplied by area (km2) of their rectangles (using a Lambert equal area projection) to give biomass-at-length (now measured in kg per rectangle). Sub-divisional level (not GNSFraOT4) estimates of biomass-at-length are given by the sum of the rectangle-based biomass-at-length estimates and corrected by a scaling factor = 1/(proportion of the area of sub-division monitored in the survey year) (units are now tonnes per sub-division). The scaling factor correction ensures that the weighting of the strata relative to each other in each year is not altered by the sampling levels. Sub-divisional estimates of mean maximum length are calculated at this point for investigating the local responses of each community.

Regional estimates of biomass-at-length are estimated from the sum of sub-divisions (or in the case of GNSFraOT4 by the rectangle-based estimates). The regional assessment of mean maximum length is based on these summed estimates.

Surveys with Irregular Depth Banded Strata (i.e. All Surveys other than those with Rectangular Sampling Grids)

Catch-per-unit-area (CPUA) data (kg/km2) from multiple hauls are averaged by species for each survey strata. Sub-divisional estimates of biomass-at-length are subsequently given by CPUA multiplied by area of the survey strata (km2, using a Lambert equal area projection). Sub-divisional estimates of mean maximum length are calculated at this point for investigating the local responses of each community.

Regional estimates of biomass-at-length are estimated from the sum of sub-divisions (or in the case of GNSFraOT4 by the rectangle-based estimates). The regional assessment of mean maximum length is based on these summed estimates.

Overall assessment basis

Where multiple surveys were available for assessment, key surveys were prioritised (preferred) for assessment given the length of time series available and spatial coverage. If these measures were equal between surveys, then whichever surveyed the greatest biomass by guild was selected for indicator assessment. The following surveys were considered key:

Greater North Sea

GNSIntOT1 for both demersal and pelagic guilds was the preferred survey for the Greater North Sea, given it is the longest survey with the best spatial coverage. For the eastern Channel, GNSEngBT3 was preferred for demersal guild given more consistent sampling here than GNSIntOT1 and GNSFraOT4. GNSFraOT4 was preferred for the pelagic guild in the eastern Channel given the length of time series available.

Celtic Seas

CSScoOT1 for both demersal and pelagic guilds was preferred over CSScoOT4 and CSIreOT4 due to length of time series. CSIreOT4 for both demersal and pelagic guilds was preferred for sub-divisions to the west of Ireland and in the northern Celtic Sea, but not in the north where there was overlap with CSScoOT1. CSFraOT4 for both demersal and pelagic guilds was preferred in sub-division of the Celtic Sea, except where overlap with CSIreOT4.

CSEngBT3 for the demersal guild was preferred for the Irish Sea over CSNIrOT1 and CSNIrOT4 given greatest spatial coverage. CSNIrOT1 for the pelagic guild was preferred for the Irish Sea over CSNIrOT4 given relatively high biomass of the guild caught and identical coverage spatially and temporally.

Bay of Biscay and Iberian Coast

BBIC(s)SpaOT1 for both demersal and pelagic guilds was preferred over BBIC(s)SpaOT4 given length of survey. CSBBFraOT4, BBICPorOT4 and BBIC(n)SpaOT4 did not overlap with any other surveys.

Time series assessment

In each case the minimum value observed over the time series, prior to the last six years, was considered as a lower limit that should be avoided in future. The long-term trend in each time series (sub-division and survey level) was modelled through the application of a LOESS smoother (i.e. locally weighted scatterplot smoothing) with a simple ‘fixed span’ of one decade.

Breakpoint analyses use data to define stable underlying periods (Probst and Stelzenmuller, 2015). The method makes it possible to say whether there is a significant change in the indicator over time, that is, whether a specific period is not significantly different from the historically observed period. The method avoids the arbitrary choice of reference periods for assessment (i.e. how many years to choose to calculate an average), which can lead to subjective assessments. The shorter the period chosen the more likely it is to be comparing noise in the data or natural fluctuations in the system against each other. However, too long a period and the actual changes in the indicator might be averaged out. The minimum detectable period is defined in this analysis as three years. The analysis uses two statistical approaches: (1) applying the ‘supremum F test’ to identify if a non-stationary time series or if a constant period for the entire time series is more suitable; (2) if considered non-stationary, then breakpoint analysis finds periods of at least three years duration.

Results

Greater North Sea

Within the Greater North Sea region there are some distinct differences between the sub-divisions, with mean maximum length declining in the southern and central sub-divisions and increasing in the northerly sub-divisions. This applies to demersal fish assemblages (Figure 2) and pelagic fish assemblages (Figure 3). Only in the Kattegat and Skagerrak is there a mixed signal from the indicator, with demersal fish still at a low level but showing the first signs of recovery, while pelagic fish show no change over time. In contrast to the declining trends in the southern Greater North Sea the mean maximum length of demersal fish assemblages in the English Channel appear to be increasing.

Celtic Seas

Within the Celtic Seas region there are some distinct differences for mean maximum length between the sub-divisions with a mixed picture for demersal and pelagic fish assemblages. Demersal mean maximum length decreases along the shelf edge waters to the west, near the Irish coast of the Irish Sea and in the Clyde area, but increases to the south of Ireland, Isle of Man, Sea of the Hebrides and The Minch (Figure 2). For the pelagic fish community there are some more distinct sub-regional patterns with increases in the Irish Sea offshore, extending into the Celtic Sea but decreases in some northerly areas including the Sea of the Hebrides and west of Ireland (Figure 3).

Bay of Biscay and the Iberian Coast

Within the Bay of Biscay and Iberian Coast region, there are some sub-divisional differences but no clear patterns. Decreases are observed for demersal fish assemblages in several sub-divisions along the shelf-edge in the Bay of Biscay as well as in the Gulf of Cadiz (Figure 2). For demersal fish assemblages the main increases occur in the northern part of the Bay of Biscay closer to the shore and along the Portuguese coast. Few major sub-divisional changes over time are observed for pelagic fish (Figure 3).

Figure 2: Spatial patterns in mean maximum length per sub-division for demersal fish assemblages

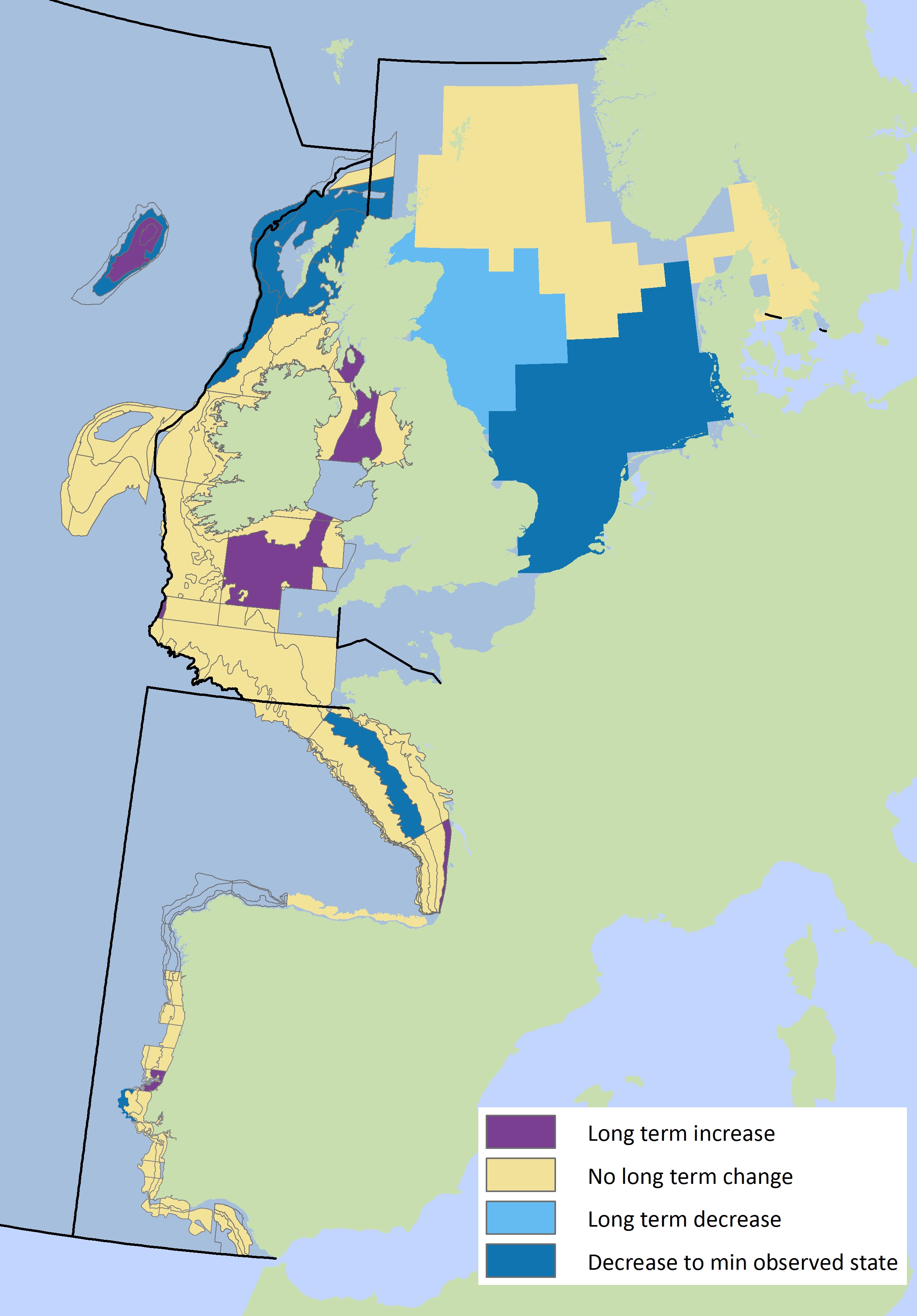

Figure 3: Spatial patterns in mean maximum length per sub-division for pelagic fish assemblages

Time series of mean maximum length per region for demersal and pelagic fish assemblages based on key surveys are outlined in Figure a. For the Greater North Sea overall, mean maximum length of the species communities, based on the most appropriate survey, has decreased over time and this applies to both demersal and pelagic fish. For the Celtic Seas there is no clear overall trend or even a pattern over time in mean maximum length for either demersal or pelagic fish. The different surveys often show contradicting signals. For the Bay of Biscay and Iberian Coast, the overall mean maximum length is increasing. This applies for demersal fish in all surveys and pelagic fish in all surveys except the one covering the northerly part in the fourth quarter.

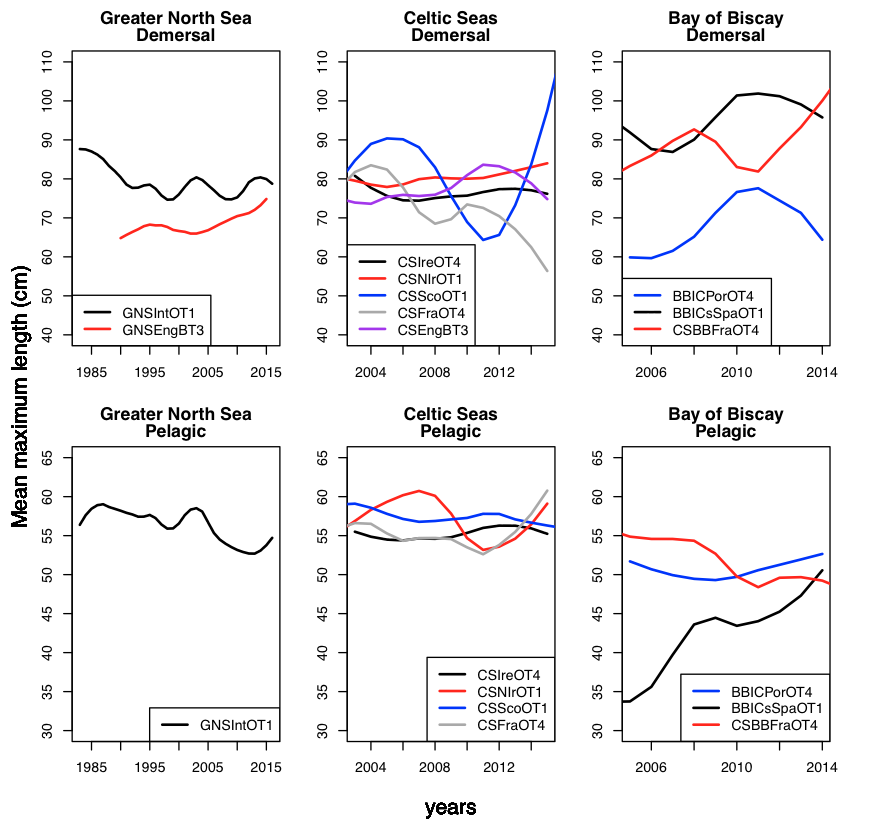

Figure a: Time series of mean maximum length per region for demersal (upper) and pelagic (lower) fish assemblages

Breakpoint analysis identified instances (surveys) where a change was observed over time.

For demersal fish this was: a decrease in the Greater North sea of 6% (GNSNetBT3) to 11% (GNSIntOT1), except for the English Channel which showed a 7% increase (GNSEngBT3); an increase in the Celtic Seas of 4–7%; and an increase in the Bay of Biscay and Iberian Peninsula of 27%.

For pelagic fish this was: a decrease in the Greater North Sea of 8%; and a decrease in in the Celtic Seas of 7–32%.

If the breakpoint analysis shows there was no stationary period over the entire time series the difference was calculated between the last and first stable periods.

Use of several surveys per region, has resulted in a large amount of useful information but with the risk that spurious patterns emerge. For example, is the decreasing trend in a given sub-division meaningful or is that period of high values indeed a sign of recovery? And which survey best represents a given component of the fish community in a given season (Q1, Q3, Q4?) in that region?

In some regions the application of sub-divisions was helpful. For example in the Greater North Sea there is a clear difference between the northern and southern parts and it could be informative to separate those signals. In other regions, clear signals are less obvious.

Conclusion

The pilot indicator shows no consistent pattern in mean maximum length across regions but there are often distinct changes over time within each region. For example, in the Greater North Sea there is an overall decline in mean maximum length for both demersal and pelagic fish assemblages, which implies that the proportion of vulnerable species (i.e. large or slow-growing species with late maturity), is declining. However, in the English Channel demersal fish assemblages appear to be recovering. In the Celtic Seas, there is no overall trend but lots of variation over time, between surveys, and between sub-divisions, especially for demersal fish. In the Bay of Biscay and Iberian Coast, mean maximum length of demersal fish is clearly increasing. This is also the case for pelagic fish, except in the northerly part of the Bay of Biscay.

The observed patterns in mean maximum length suggest that fishing has impacted the fish community such that vulnerable species have declined, although it also appears that the recent reduction in fishing mortality has resulted in a recovery of the fish community, albeit often locally.

The results from this pilot assessment can help to strengthen OSPAR’s fish community assessments in the future.

While fishing is the most likely candidate to explain these patterns in mean maximum length it is unclear whether the observed decline in mean maximum length is caused by exploitation only or whether there are possible alternatives. For example, global warming may have caused an influx of species with smaller maximum length.

The results from this pilot assessment provide further context to the other fish community indicator assessments of demersal communities. At a regional scale all indicators provide similar conclusions, but at a finer scale responses diverge. This pilot assessment also provides a separate assessment of the pelagic fish communities. The combined set can help strengthen OSPAR’s fish community assessments in the future.

Knowledge Gaps

The main causes for the observed spatial and temporal patterns in the mean maximum length indicator are not yet known.

Reference levels representing a pristine or sustainably exploited state and that would allow a formal assessment, are not yet available.

It is currently unclear whether the observed decline in mean maximum length is caused by fisheries exploitation only or whether there are possible alternatives. For example, the warming of the Greater North Sea due to climate change may have caused an inflow of Lusitanian (warm-water southern) species, especially in the southern part of the Greater North Sea. These Lusitanian species tend to be smaller-bodied than Boreal (cold-water northern) species. Additional analyses are required to separate these two possible causes. Additional research is required to disentangle many of the factors that may have caused or at least contributed to the observed spatial and temporal patterns.

Further work is required to evaluate baselines and assessment values. However, the time series do not extend to a period where it can be assumed that species composition was not impacted, or possibly even representative of sustainable exploitation. During the early 1980s, key commercially fished pelagic species (herring (Clupea harengus), mackerel (Scomber scombrus), sprat (Sprattus sprattus)) were recovering from stock depletion such that the species composition of the community in this period was already likely to be heavily impacted. In fact, even before this time, other vulnerable pelagic and demersal species such as Atlantic bluefin tuna (Thunnus thynnus) and common skate Dipturus batis-complex were extirpated from the Greater North Sea. As a result, any historical baseline for the fish and elasmobranch community will represent an impacted state.

Adams, P.B. 1980 Life history patterns in marine fishes and their consequences for management. Fishery Bulletin, 68, 1 12.

Brander, K. 1981 Disappearance of common skate, Raia batis, from the Irish Sea. Nature, 68, 48 49.

Fraser, H. M., Greenstreet, S. P. R., and Piet, G. J. 2007. Taking account of catchability in groundfish survey trawls: implications for estimating demersal fish biomass. ICES Journal of Marine Science, 64: 1800–1819

Greenstreet, S. P. R., Fraser, H. M., Rogers, S. I., Trenkel, V. M., Simpson, S. D., and Pinnegar, J. K. 2012. Redundancy in metrics describing the composition, structure, and functioning of the North Sea demersal fish community. ICES Journal of Marine Science, 69: 8-22.

Greenstreet, S.P.R. and Hall, S.J. 1996 Fishing and ground-fish assemblage structure in the north-western North Sea: an analysis of long-term and spatial trends. Journal of Animal Ecology, 68, 577 598.

ICES. 2012. Report of the Working Group on The Ecosystem Effects of Fishing Activities (WGECO), 11–18 April 2012, Copenhagen, Denmark. ICES CM 2012/ACOM:26. 192 pp.

ICES. 2014. Interim Report of the Working Group on Multispecies Assessment Methods (WGSAM), 20–24 October 2014, London, UK. ICES CM 2014/SSGSUE:11

ICES. 2016. Report of the Working Group on the Ecosystem Effects of Fishing Activities (WGECO), 6–13 April 2016, Copenhagen, Denmark. ICES CM 2016/ACOM:25. 110pp.

Jennings, S., Greenstreet, S. P. R., and Reynolds, J. D. 1999. Structural change in an exploited fish community: a consequence of differential fishing effects on species with contrasting life histories. Journal of Animal Ecology, 68: 617-627.

Jennings, S. & Kaiser, M.J. 1998 The effects of fishing on marine ecosystems. Advances in Marine Biology, 68, 201 352.

Jennings, S., Reynolds, J. D., and Mills, S. C. 1998. Life history correlates of responses to fisheries exploitation. Proceedings of the Royal Society B-Biological Sciences, 265: 333-339.

Kirkwood, G.P., Beddington, J.R., Rossouw, J.A. 1994 Harvesting species of different lifespans. Large-Scale Ecology and Conservation Biology (eds P. J.Edwards, R. M.May & N. R.Webb), pp. 199 227. Blackwell Science Limited, Oxford.

Myers, R.A., Hutchings, J.A., Barrowman, N.J. 1996 Hypothesis for the decline of cod in the North Atlantic. Marine Ecology Progress Series, 68, 293 308.

Probst, W. N. and V. Stelzenmuller (2015). "A benchmarking and assessment framework to operationalise ecological indicators based on time series analysis." Ecological Indicators 55: 94-106.

Roff, D.A. 1984 The evolution of life history parameters in teleosts. Canadian Journal of Fisheries and Aquatic Science, 68, 989 1000.

Shephard, S., Fung, T., Houle, J.E., Farnsworth, K.D., Reid, D.G., Rossberg, A.G. (2012) Size-selective fishing drives species composition in the Celtic Sea. ICES Journal of Marine Science, 69, 223– 234.

Sutherland, W.J. and Reynolds, J.D. 1998 Sustainable and unsustainable exploitation. Conservation Science and Action (ed. W. J.Sutherland), pp. 90 115. Blackwell Science Limited, Oxford.

Vince, M.R. 1991 Stock identity in spurdog (Squalus acanthias L.) around the British Isles. Fisheries Research, 68, 341 354.

von Bertalanffy, L. 1957. Quantitative laws in metabolism and growth. Quarterly Review of Biology, 32: 217-221.

Walker, P.A. and Heessen, H.J.L. 1996 Long-term changes in ray populations in the North Sea. ICES Journal of Marine Science, 68, 1085 1093.

Walker, N. D., Maxwell, D. L., Le Quesne, W. J. F., and Jennings, S. (2017) Estimating efficiency of survey and commercial trawl gears from comparisons of catch-ratios. ICES Journal of Marine Science, doi:10.1093/icesjms/fsw250
