Teneurs en oxygène dissous près du sol marin

D5 - Eutrophisation

D5.3 - Effets indirects de l’enrichissement en nutriments

Message clé

L’oxygène dissous est nécessaire pour la santé des écosystèmes marins. Dans l’ensemble, les teneurs en oxygène dissous près du sol marin ne posent pas de problème dans les zones évaluées. On relève cependant un appauvrissement en oxygène dans certaines zones localisées. On a relevé une amélioration des niveaux des teneurs en oxygène dissous dans le Kattegat.

Zone Évaluée

Récapitulatif Imprimable

Contexte

L'objectif stratégique d’OSPAR, en ce qui concerne l’eutrophisation, consiste à lutter contre l'eutrophisation dans la zone maritime OSPAR, dans le but ultime de parvenir à, et de maintenir, un milieu marin sain, exempt d’eutrophisation anthropique. L’oxygène dissous fait partie d’une série de cinq indicateurs de l’eutrophication. Cette série d’indicateurs peut identifier l’eutrophisation lorsque ces indicateurs sont évalués et étudiés ensemble dans le cadre de la Procédure Commune d’OSPAR selon une méthode à plusieurs étapes.

Un enrichissement excessif en nutriments des eaux marines peut entraîner des efflorescences algales (phytoplancton) et donc, éventuellement, des perturbations indésirables de l’équilibre des organismes dans les écosystèmes marins et de la qualité de l’eau en général. Les perturbations indésirables sont notamment des modifications de la composition et de l’ampleur de la flore et de la faune et l’appauvrissement en oxygène causés par la décomposition de matière organique accumulée produite par le phytoplancton ou les communautés algales durant leurs saisons de croissance. L’appauvrissement en oxygène peut entraîner des changements de comportement ou la mort du poisson ou d’autres espèces. L’appauvrissement en oxygène peut être un effet indirect de l’enrichissement en nutriments mais d’autres pressions compliquent souvent l’identification de liens de cause à effet entre les perturbations et l’enrichissement en nutriments. Les facteurs qui influencent les teneurs en oxygène sont notamment des modifications de la température et de la salinité de l’eau et le changement climatique. L’appauvrissement en oxygène saisonnier peut être un processus naturel localisé, en particulier en cas de stratification saisonnière de la colonne d’eau.

On considère que des teneurs en oxygène supérieures à 6 mg/l permettent de conserver le milieu vivant marin, sans grand problème, alors que celles inférieures à 2 mg/l (hypoxie, c’est-à-dire insuffisance en oxygène) (Figure 1) causent des problèmes graves.

Les relevés de la mer Baltique révèlent que lorsque les eaux de fond contiennent très peu d’oxygène, les seuls organismes pouvant prospérer sont les bactéries qui vivent sur ou dans le sol marin (Figure 2).

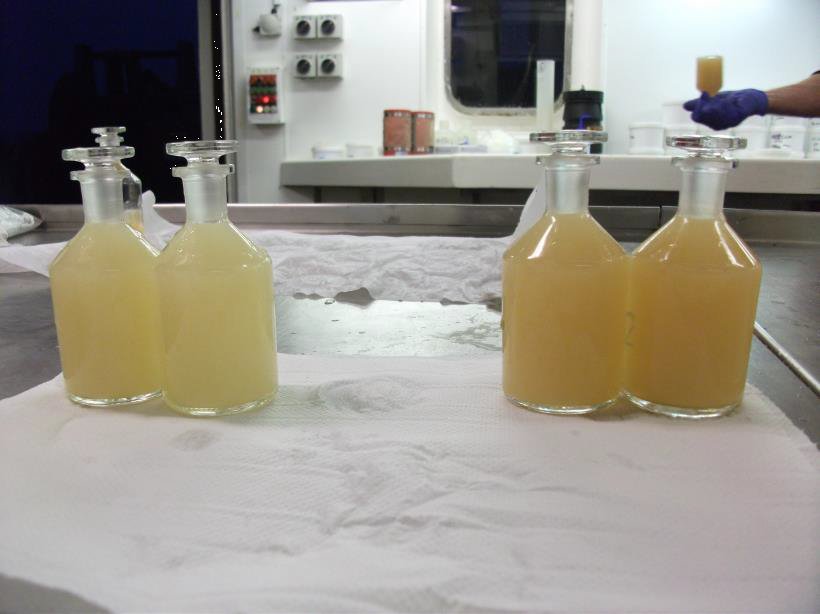

Figure 1: Echantillons d’eau prélevés dans les mers Celtiques au cours d’une floraison de Karenia mikimotoi (juillet 2011).

Avec l’ajout de réactifs, les échantillons prélevés en surface sont plus foncés (teneurs plus élevées en oxygène dissous) que ceux prélevés près du fond (moins d’oxygène dissous). © Elisa Capuzzo, Cefas

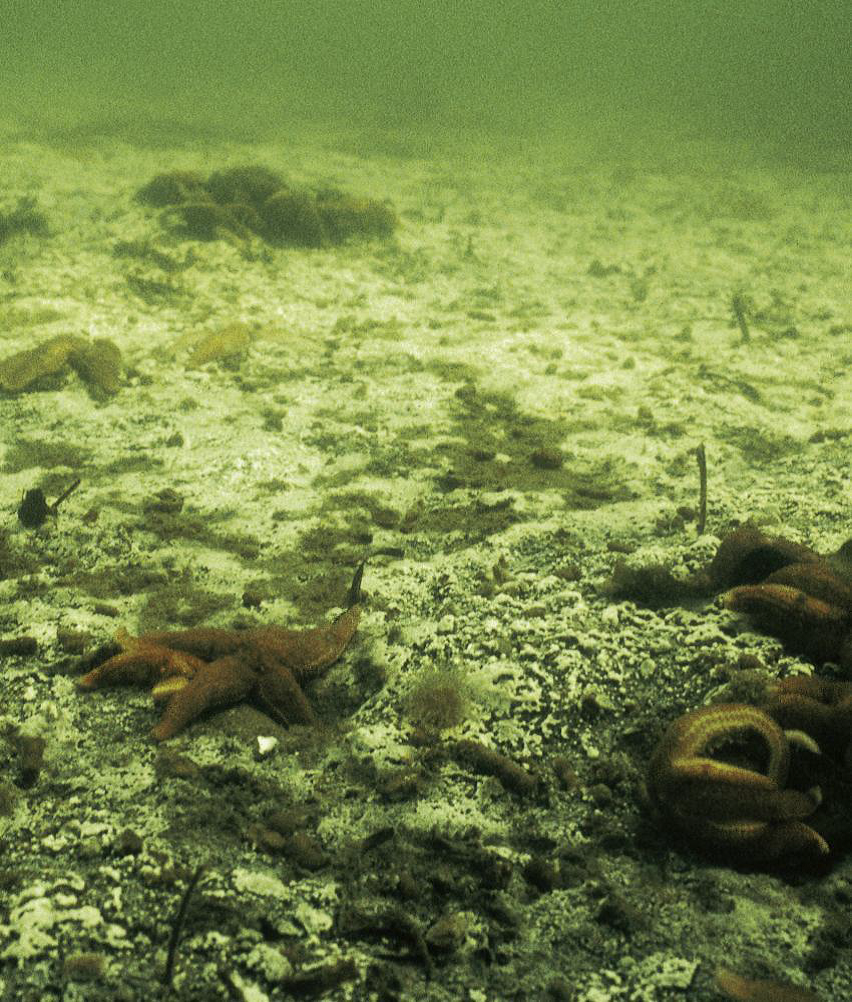

Figure 2: Faibles teneurs en oxygène dans la mer Baltique. Les bactéries de soufre blanches forment une couche © Peter Bondo Christensen

Eutrophication is the result of excessive enrichment of water with nutrients. This may cause accelerated growth of algae and / or higher forms of plant life (Council Directive 91/676/EEC). This may result in an undesirable disturbance to the balance of organisms present and thus to the overall water quality. Undesirable disturbances can include shifts in the composition and extent of flora and fauna and the depletion of oxygen due to decomposition of accumulated biomass. Such disturbances then have other effects, such as changes in habitats and biodiversity, blooms of nuisance algae or macroalgae, decrease in water clarity and behavioural changes or even death of fish and other species. Identifying causal links between these disturbances and nutrient enrichment can be complicated by other pressures. Cumulative effects, including climate change, may have similar effects on biological communities and dissolved oxygen, further complicating efforts to demonstrate causal links.

The OSPAR Commission’s strategic objective, with regard to eutrophication, is to combat eutrophication in the OSPAR Maritime Area, with the ultimate aim that by 2020 the OSPAR Maritime Area is a healthy marine environment where anthropogenic eutrophication does not occur (OSPAR Agreement 2010-3). The OSPAR Eutrophication Strategy requires assessment of eutrophication to be based on the ecological consequences of nutrient enrichment and not just on nutrient enrichment alone, i.e. finding reliable evidence for accelerated growth of algae and / or macrophytes caused by anthropogenic nutrient enrichment, leading to undesirable disturbance. Eutrophication is diagnosed using OSPAR’s harmonised criteria of nutrient inputs, concentrations and ratios, chlorophyll-a concentrations, phytoplankton indicator species, macrophytes, dissolved oxygen levels, incidence of fish kills and changes in zoobenthos (OSPAR Agreement 2010-8). As there is no single indicator of disturbance caused by marine eutrophication, OSPAR applies a multi-step method using the harmonised criteria. Eutrophication is considered to have occurred if there is evidence for all of the stages shown in Figure a and of causal links between them (ECJ, 2009).

For OSPAR’s Intermediate Assessment 2017, five harmonised eutrophication criteria have been assessed at a regional scale: nutrient inputs, nutrient concentrations and ratios, chlorophyll-a concentrations, concentrations of the nuisance algae Phaeocystis, and dissolved oxygen levels. These are highlighted in Figure a. The individual assessment results of any one of these five common indicators do not diagnose eutrophication by themselves. However, the assessments provide useful information about trends and are important for informing management measures.

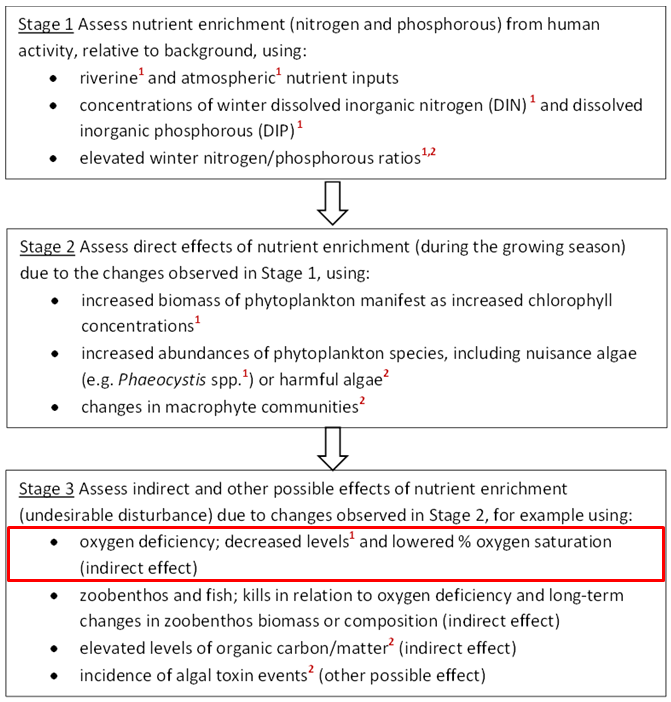

Figure a: Three stages in the identification of eutrophication. The criteria marked ¹ are common indicators for the OSPAR Intermediate Assessment 2017. The criteria marked ² are not relevant in all countries’ waters. The common indicator assessed here (dissolved oxygen levels) is outlined in red

The concentration of dissolved oxygen was assessed as an indicator of indirect effects of nutrient enrichment (Figure a). Depletion of oxygen may be caused by decomposition of accumulated organic material produced by algae (phytoplankton) or seaweed communities during their growing seasons, and may result in behavioural changes or death of fish and other species. However, oxygen depletion is not necessarily a consequence of nutrient enrichment and may be influenced by several other factors, including changes in water temperature and salinity. Seasonal oxygen depletion can be a natural localised process, particularly where the water column stratifies seasonally.

Available data were used to calculate the mean concentration and percentage saturation of dissolved oxygen in the lowest quartile (25%) of the data within 10 m of the seafloor in marine waters (salinity ≥30) during the stratification season (1 July–31 October).

Dissolved oxygen was assessed in the OSPAR Quality Status Report (QSR) 2010 as part of the Common Procedure for the identification of eutrophication. There is no comparable regional indicator assessment of dissolved oxygen.

Near seafloor oxygen concentrations >6 mg/l are considered to cause minimal problems to marine life (Best et al., 2007), while concentrations <2 mg/l (hypoxia) are considered to cause severe problems (Levin et al., 2009). Assessment levels used by OSPAR countries applying the Common Procedure (OSPAR 2013-8) range from 2 to 6 mg/l, and are applied over specified assessment periods. For the third application of the Common Procedure , this period is 2006–2014. However, for trend assessments, data from longer time series are used, where available. Data from the period 1990–2014 were used to assess trends in the data.

OSPAR IA 2017 Indicator Assessment values are not to be considered as equivalent to proposed European Union Marine Strategy Framework Directive (MSFD) criteria threshold values, however they can be used for the purposes of their MSFD obligations by those countries that wish to do so.

Data

Data on dissolved oxygen concentrations for the period 1990–2014 and all supporting information (e.g. latitude, longitude, water column depth, sample depth, temperature, salinity) were obtained from ICES[1], (Figure b)[2]. Data were filtered for the assessment, to obtain data from near the seafloor[3] in marine waters (i.e. coastal and offshore waters with salinity ≥30, see OSPAR Agreement 2013-8) during the stratification season (1 July–31 October)[4]. For the Skagerrak and Kattegat, data from fjords were filtered to exclude high salinity bottom waters. Percentage saturation of dissolved oxygen was calculated from oxygen concentrations, temperature and salinity.

Spatial scales

Two scales of data aggregation were adopted for the assessment, the large-scale common assessment areas, and smaller ICES rectangles. The large-scale common assessment areas were the Greater North Sea (northern North Sea; southern North Sea; the English Channel; the Skagerrak; the Kattegat; and the Sound), the Celtic Seas, and the Bay of Biscay and Iberian Coast. The smaller scale of rectangles (1° Longitude by 0.5° Latitude) helps to identify localised areas that may be characterised by low oxygen levels (‘hotspots’). In the south-eastern part of the North Sea, data were analysed by individual rectangles and in an aggregated dataset, due to limited data in many individual rectangles.

The outcome per area was summarised in a map showing the mean dissolved oxygen concentrations in four ranges (<2, 2–4, 4–6 and >6 mg/l) for the period 1 July to 31 October in 2014.

Trend Assessments

For the full time series (1990–2014), means in the lowest quartile of the data per stratification season per year were used to identify trends in the data. Where fewer than five data points were available in any given year in an assessment area, these data points were excluded, in order to avoid bias in the analysis.

Trends were assessed using the Mann-Kendall non-parametric test for trend analysis (Mann, 1945; Kendall, 1975). The R library package ‘emon’ was used (Barry and Maxwell, 2015). Where p<0.05, it was assumed that there was a significant trend. Where p>0.05, a trend could not be detected statistically. Where trends were significant, weighted least squares (WLS) regression lines  were calculated, using the 95% confidence intervals for the means.

COMP3 Assessment Period

For the period relevant to the third application of the Common Procedure  (2006–2014), data on oxygen concentrations were analysed by the large-scale common assessment areas and by ICES rectangles (individual and aggregated). Mean oxygen concentrations in the lowest quartile of the data per area were summarised in maps using four data ranges (<2, 2–4, 4–6 and >6 mg/l). For the large-scale common assessment regions, there were sufficient data per region to map the results.

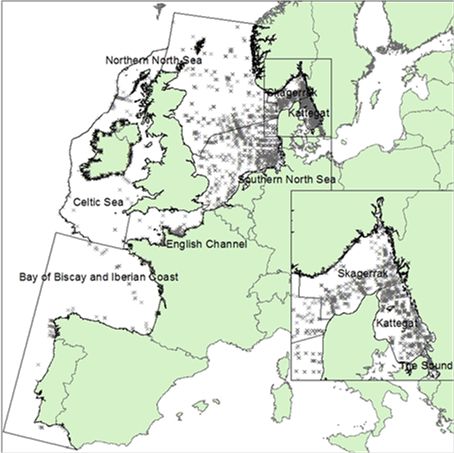

Figure b: Assessed area showing sites where ICES data were available for the period 1990–2014. Filtered by season (stratification season 1 July–31 October), depth (within 10 m of the seafloor) and salinity (≥30) to obtain the specific data required for the assessments. Data from fjords were filtered to exclude high salinity bottom waters




[1][1]Datasets were requested from ICES in May 2015 and updated in December 2016, from: 35N to 63N, 13W to 16E (to encompass OSPAR Maritime Area “Greater North Sea”, “Celtic Seas” and “Bay of Biscay and Iberian Coast”). 1/1/1990 to present, temperature, salinity and oxygen concentration. This comprised CTD profiles, reduced to standard depths (0m, 5m, 10m, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 120, 140, 160, 180, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000, 2200, 2400, 2500, 2600, 2800, 3000, 3200, 3400, 3600, 3800, 4000, 4500, 5000, 6000, 6500, 7000, 8000m, etc, with deepest measurement always retained) and bottle data samples. Data from France were not in the ICES database and were provided separately.

[2] For the UK, this does not include data collected under the Water Framework Directive (WFD).

[3] Data were filtered to select data within 10m of the seafloor, and then the deepest sample was selected for the analyses; where the water column was deeper than 500 m, the data were not included in the analyses.

[4] Number of data points available after application of filters. In brackets = 1990-2014; in bold = 2006-2014: northern North Sea, NNS (735) 271; southern North Sea, SNS (1505) 422; Skagerrak (1775) 400; Kattegat (2417) 688; The Sound (426) 125; English Channel (2256) 1273; Celtic Sea (2851) 2669; Bay of Biscay and Iberian Coast (1515) 1403.

Résultats

Les teneurs moyennes en oxygène près du fond (2006–2014) évaluées dans des régions à grande échelle de la mer du Nord septentrionale, de la mer du Nord méridionale, de la Manche, des mers Celtiques, et du golfe de Gascogne et de la côte ibérique étaient >6 mg/l. Les teneurs moyennes en oxygène près du fond étaient inférieures dans le Skagerrak (5,25 mg/l), le Kattegat (3,98 mg/l) et le Sund (2,80 mg/l). Les teneurs en oxygène dans ces trois régions subissent la forte influence des conditions écologiques et hydrodynamiques locales.

On n’a relevé aucune tendance temporelle significative statistiquement (1990–2014) des teneurs en oxygène près du fond ou du pourcentage de saturation dans la plupart des régions à grande échelle (mer du Nord septentrionale, mer du Nord méridionale, Skagerrak, Sund, Manche, mers Celtiques et golfe de Gascogne et côte ibérique). La seule exception est le Kattegat, des tendances à la hausse significatives des teneurs en oxygène et du pourcentage de saturation ayant été relevées.

Les données disponibles (1990–2014), au sein des régions à grande échelle ont été analysées à une échelle plus petite en utilisant les rectangles du CIEM. Les analyses révèlent que les teneurs moyennes en oxygène près du fond dans le quartile le plus bas des données au cours de la saison de stratification estivale étaient >6 mg/l dans la plupart des rectangles du CIEM dans chaque région, à l’exception de la mer du Nord méridionale et du Kattegat (Figure 3). Pour la mer du Nord méridionale, les rectangles dont les valeurs moyennes sont <6 mg/l indiquent des zones localisées à teneurs en oxygène plus basses. Ces rectangles se trouvent principalement dans la partie est de la mer du Nord méridionale (indiquée en gras dans la Figure 3), région dont la variabilité hydrodynamique est très élevée. Aucune tendance temporelle n’a été identifiée dans 12 des 13 rectangles individuels dans l’est de la mer du Nord méridionale (c’est-à-dire les teneurs en oxygène dissous restent inchangées). On a relevé une tendance à la baisse significative dans un rectangle (dans le Skagerrak, au large de la côte sud-est de la Norvège). On n’a relevé aucune tendance significative statistiquement à grande échelle, après avoir agrégé les données de ces rectangles (Figure 3) dans une série de données.

Dans le Skagerrak et le Kattegat, les rectangles du CIEM révèlent également des teneurs moyennes en oxygène près du fond <6 mg/l. Les caractéristiques propres à cette région signifient cependant que ces niveaux ne doivent pas être considérés comme indiquant une insuffisance en oxygène. Dans le cas du Kattegat, les analyses des rectangles indiquent des zones à teneurs moyennes près du fond plus élevées (4–6 mg/l) que celles calculées en utilisant une analyse régionale à grande échelle (2–4 mg/l).

Dans le golfe de Gascogne et la côte ibérique, quatre rectangles révèlent des teneurs en oxygène plus basses (4–6 mg/l) mais les données étaient insuffisantes pour pouvoir réaliser des analyses détaillées. Un rectangle dans les mers Celtiques révèle une teneur moyenne en oxygène près du fond (5,8 mg/l) proche du haut de la gamme de 4 à 6 mg/l, indiquant une zone localisée contenant peu d’oxygène.

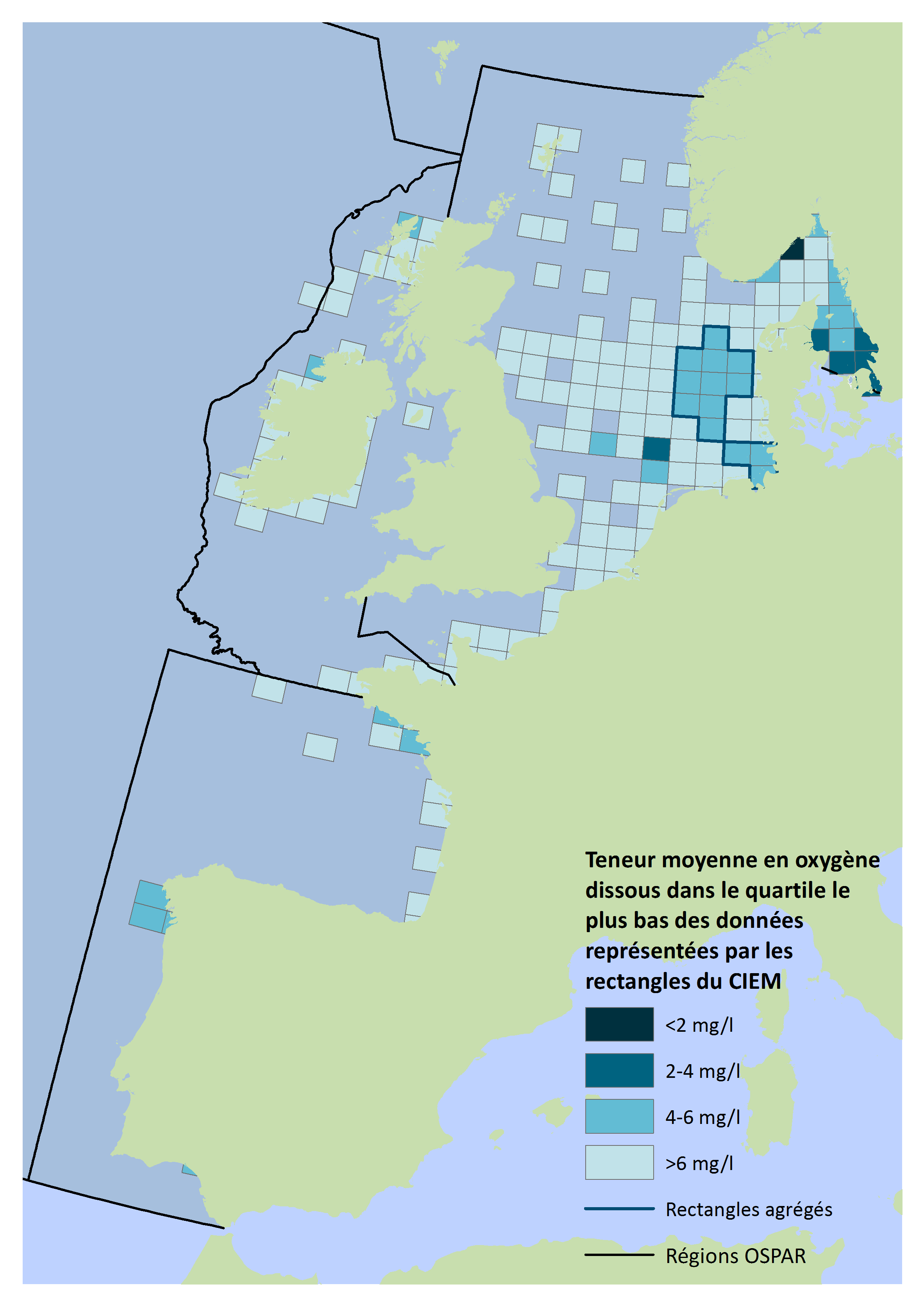

Figure 3: Teneur moyenne en oxygène dissous dans le quartile le plus bas des données représentées par les rectangles du CIEM pour la période de 1990 à 2014.

Les rectangles agrégés pour les analyses sont indiqués en gras. Les données ont été filtrées par saison (saison de stratification du 1er juillet au 31 octobre), par profondeur (à moins de 10 m du fond marin), et par salinité (≥30). Les résultats sont indiqués pour les rectangles contenant au moins cinq points de données. Les zones vides indiquent que les données étaient absentes ou insuffisantes

Dans l’ensemble, les résultats indiquent que les teneurs en oxygène, lorsqu’elles sont analysées à plus grande échelle, ne diminuent pas pendant les périodes d’évaluation plus courtes (2006–2014) et plus longues (1990–2014).

La disponibilité des données et la méthodologie inspirent une confiance modérée.

For temporal trend analyses, longer-term datasets (1990–2014) were used. Mann Kendall analyses were considered to provide a robust estimate of significant trends. Downward trends indicate that oxygen levels are decreasing over time and may be a cause for concern. Where Mann Kendall analyses showed significant trends, weighted linear (least squares) regression lines were used to show the trends in oxygen concentration and percentage saturation.

Analyses of longer-term data in the Greater North Sea, Celtic Seas, and Bay of Biscay and Iberian Coast regions showed that oxygen concentrations (1990–2014) varied from year to year in each of the assessment areas. Analyses by ICES rectangles showed similar interannual variability in the data.

For the period 2006–2014, far fewer ICES rectangles had sufficient data (>5 data points) for an overall assessment (Figure c). In the northern North Sea and southern North Sea, five rectangles had mean values of <6 mg/l (compared to 16 using the 1990–2014 time series). In the Skagerrak and Kattegat, approximately half of rectangles had mean values <6 mg/l.

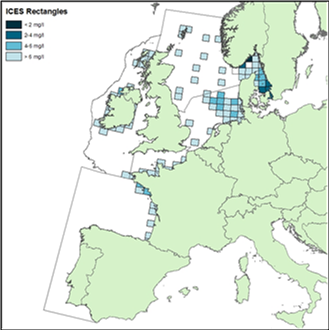

Figure c: Mean concentration of dissolved oxygen in the lowest quartile of the data plotted by ICES rectangles for the period 2006–2014. Results are shown for rectangles where there were five or more data points, after filtering by season (stratification season 1 July–31 October), depth (within 10 m of the seafloor) and salinity (≥30) to obtain the specific data required for the assessments. Blank areas indicate where there were no data or insufficient data

Northern North Sea and southern North Sea

For the large-scale regions of the northern North Sea and southern North Sea, mean near-bed dissolved oxygen concentrations for 20062014 were >6 mg/l. Stratified-season means in the lowest quartile were >6 mg/l and ≥60% saturation in all years in the northern North Sea, and above 5 mg/l and ≥60% saturation in all years in the southern North Sea (Figure d). In both the northern North Sea and southern North Sea, 95% confidence levels indicate high confidence in the data. Mann-Kendall analyses using the annual mean data showed no significant trends in oxygen concentration and percentage saturation of dissolved oxygen (Table aand Table b).

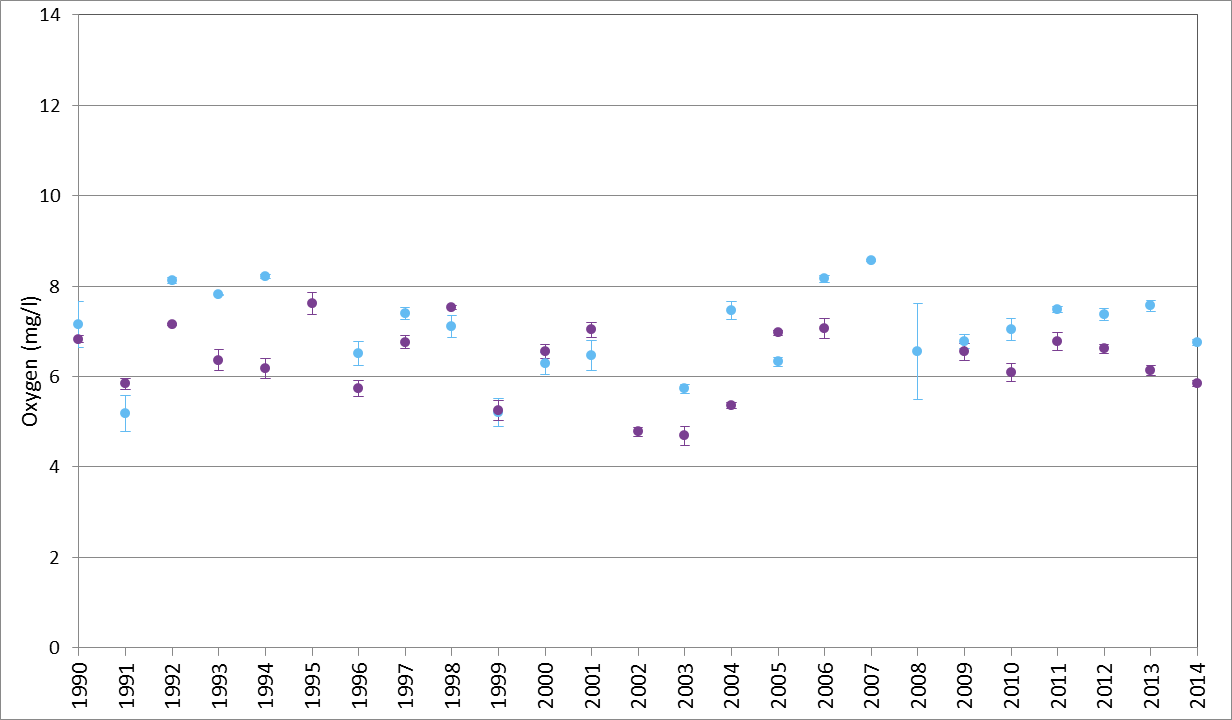

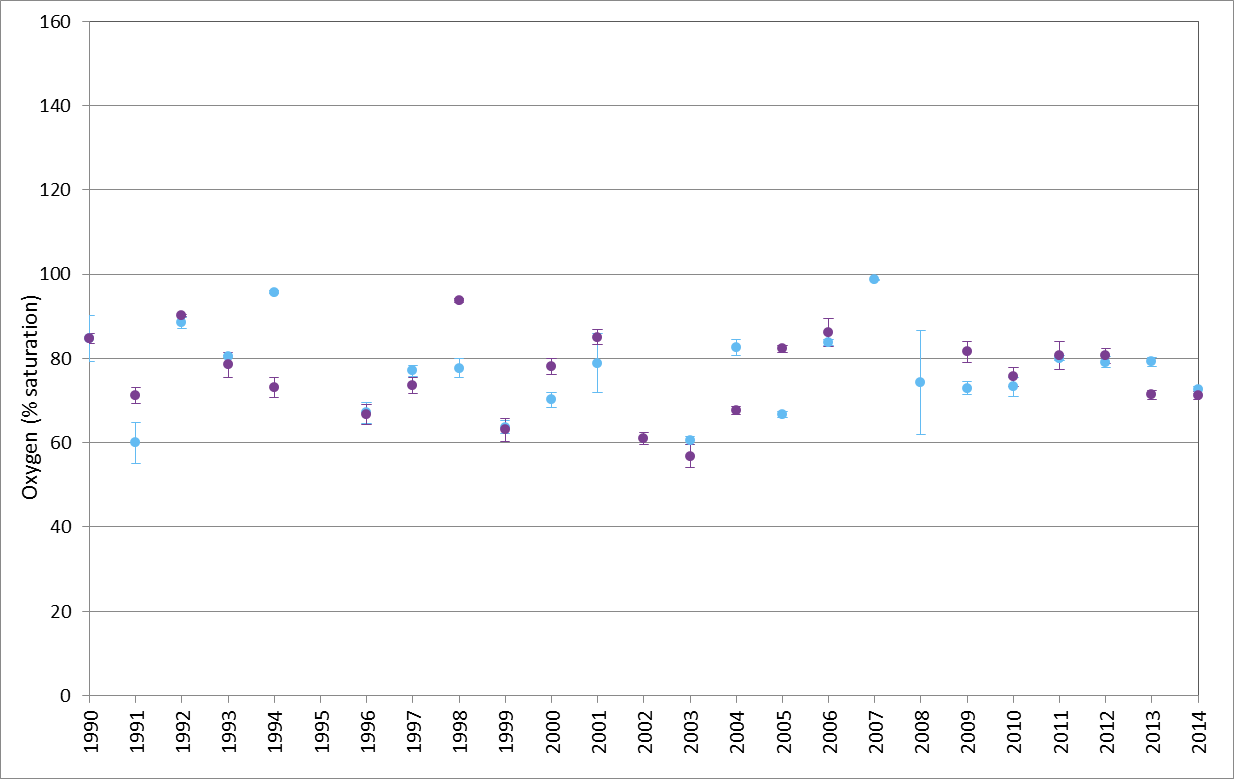

Figure d: Dissolved oxygen in the southern North Sea (purple dots) and northern North Sea (blue dots) for the period 1990–2014, shown as stratified-season (1 July–31 October) means for the lowest quartile of the data ± the 95% confidence interval. Results are shown for years with five or more data points after filtering by season, depth (within 10 m of the seafloor) and salinity (≥30) (for additional details on number of samples per year and minimum values, see Table e). (i) oxygen concentration (mg/l), (ii) oxygen percentage saturation

Within the southern North Sea, ICES rectangles with mean dissolved oxygen values of <6 mg/l in the lowest quartile of the data were observed mainly in the eastern areas (outlined in bold in Figure e), and indicate localised areas (‘hotspots’) with lower oxygen levels (mean 4–6 mg/l, Figure 3 and Figure e; minimum = 2.8 mg/l, Table d). These results broadly agree with previous findings (e.g. Topcu and Brockmann, 2015; Große et al., 2016), although the ICES dataset did not include the earlier data (1980–1990) and local datasets used in those previous studies. The hotspots are located in regions that show a high degree of hydrodynamic variability. Most are relatively shallow (less than about 40 m), with competing influences from riverine outflow (such as the Elbe), wind mixing (e.g. in shallow areas along the Danish coast), and localised influences such as in the Elbe channel where seasonal stratification occurs in warm years and low oxygen conditions may occur near the bed if there is low through-flow (van Leeuwen et al., 2015).

Several researchers have shown that water column stratification represents a major process regulating the seasonal dynamics of bottom oxygen levels (e.g. Topcu and Brockmann, 2015; Queste et al., 2016). However, it has been shown that the lowest oxygen conditions in the North Sea do not occur in the areas of strongest stratification (e.g. Große et al., 2016; Queste et al., 2016). Although stratification is an important prerequisite for oxygen deficiency, the changes observed represent the end result of a complex interaction between hydrodynamic and biological processes. Oxygen consumption may be affected by biological processes such as pelagic and benthic remineralisation of organic matter, zooplankton respiration, nitrification and denitrification. Große et al. (2016) analysed oxygen dynamics under stratified conditions in the southern North Sea. They found that biological consumption processes (mainly by bacteria) control the sub-thermocline oxygen conditions. There is a strong link between near-surface primary production and the export of organic matter into the bottom water layer, enhancing bacterial remineralisation. These processes in combination with the size of the sub-thermocline water volume, control the evolution of the oxygen concentration. Regions with high surface net primary production and a small sub-thermocline volume are particularly susceptible to oxygen deficiency.

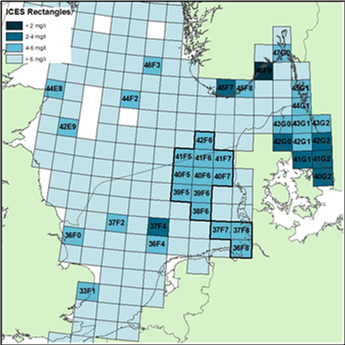

Figure e: ICES codes for rectangles in the northern North Sea, southern North Sea, Skagerrak and Kattegat where mean near-bed oxygen concentrations in the lowest quartile of available data (1990–2014) were <6 mg/l, after filtering by stratified-season (1 July–31 October), depth (within 10 m of the seafloor) and salinity (≥30). For the eastern part of the southern North Sea, data were analysed by rectangle for long-term trends, and using aggregated data from all adjoining rectangles (outlined in bold)

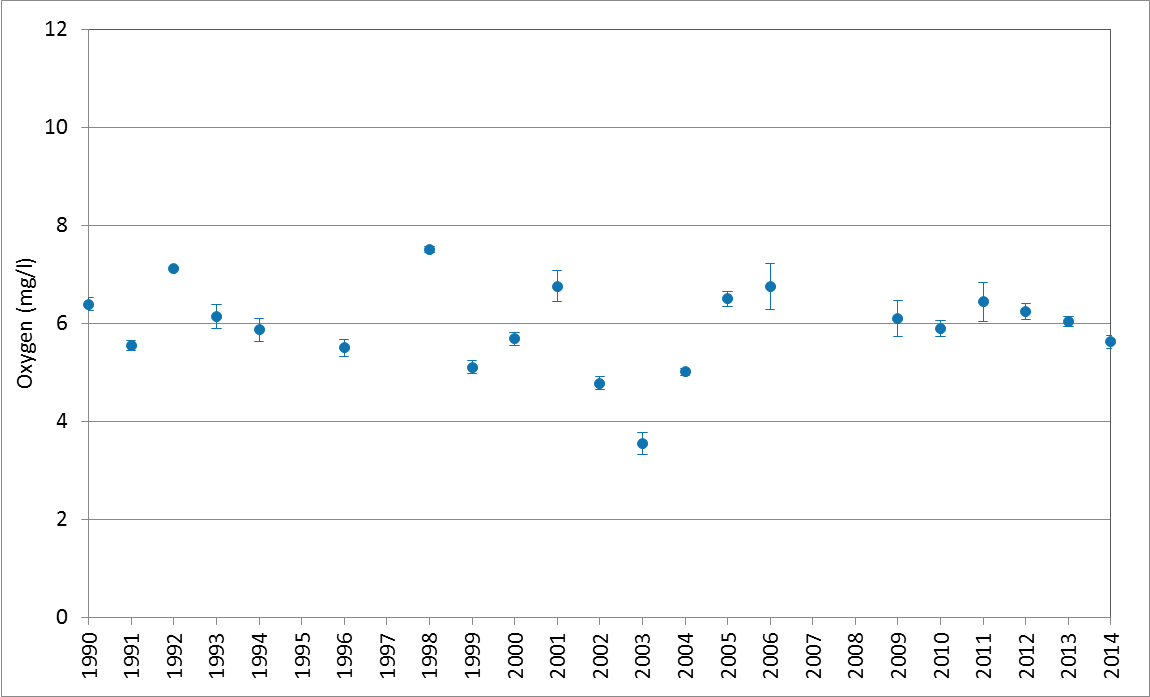

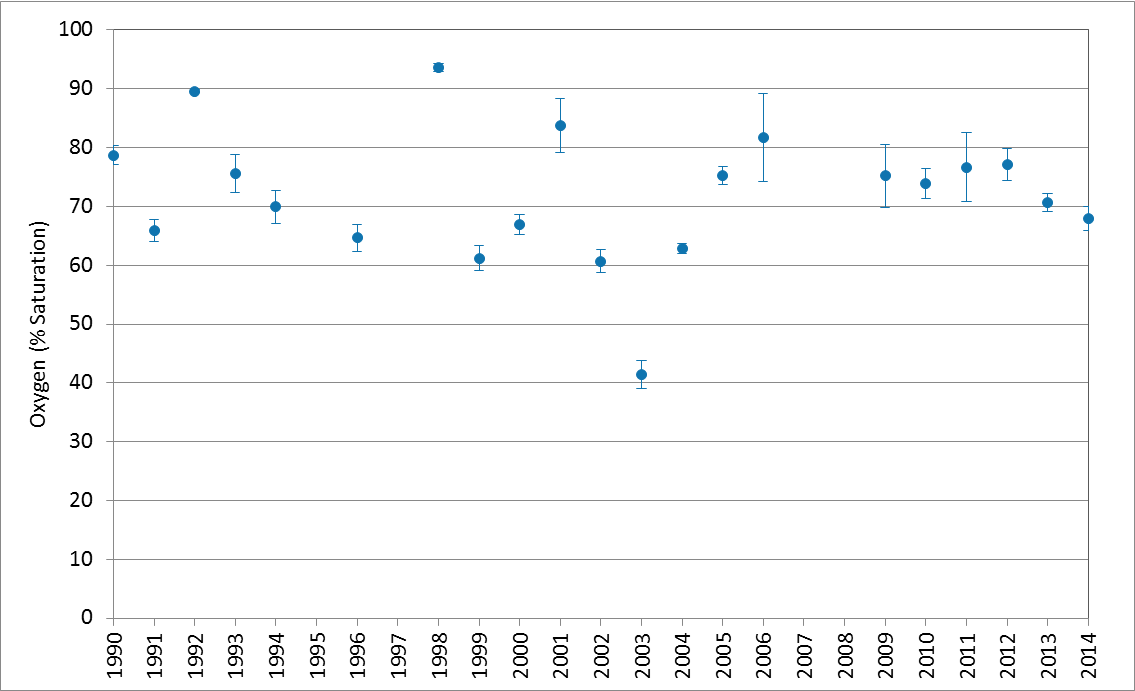

Figure f: Dissolved oxygen (1990–2014) in aggregated ICES rectangles in the eastern part of the southern North Sea with mean concentrations <6 mg/l (see Figure 3). Data are shown as stratified-season (1 July–31 October) means in the lowest quartile of the data ± the 95% confidence interval. Results are shown for years with five or more data points after filtering by season, depth (within 10 m of the seafloor) and salinity (≥30). (i) oxygen concentration (mg/l), (ii) oxygen percentage saturation

Mann Kendall analyses indicated no significant trends in dissolved oxygen concentration or saturation in 12 of the 13 ICES rectangles or in the aggregated dataset for the south-eastern part of the North Sea (Figure f). ICES rectangle 40F7 was found to have a significant downward trend in dissolved oxygen concentration (Table c). Summary statistics for the aggregated dataset (Table d) indicate variability in the data, with measurements ranging from a minimum of 2.82 mg/l to a maximum of 12 mg/l, and mean values in the lowest quartile of the data of 3.55–7.5 mg/l in years when more than four data points were available.

Table a: Results of Mann-Kendall (MK) analyses for assessment areas for dissolved oxygen concentration (mg/l) using the mean stratified-season (1 July–31 October)
RegionnMK Statisticp-value
Bay of Biscay and Iberian Coast14250.193
Celtic Sea1750.881
English Channel12-40.842
Kattegat251060.0135
Northern North Sea23-11
Skagerrak25-660.131
Southern North Sea24-200.641
The Sound25660.129

Data filtered by season, depth (within 10 m of the seafloor) and salinity (≥30). The sign of the MK statistic gives the direction of the trend. Statistically significant trend (p<0.05) in bold. n, number of data points (years).

Table b: Results of Mann-Kendall (MK) analyses for assessment areas for dissolved oxygen saturation (% saturation) using the mean stratified-season (1 July–31 October)
RegionnMK statisticp-value
Bay of Biscay and Iberian Coast15330.114
Celtic Seas18-230.489
English Channel1550.847
Kattegat251100.010
Northern North Sea2390.834
Skagerrak25-680.119
Southern North Sea24-200.640
The Sound25660.129

Data filtered by season, depth (within 10 m of the seafloor) and salinity (≥30). The sign of the MK statistic gives the direction of the trend. Statistically significant trend (p<0.05) in bold. n, number of data points (years)

Table c: Results of Mann-Kendall (MK) analyses of dissolved oxygen concentration (mg/l) in ICES rectangles in the eastern southern North Sea
RegionnMK statisticp-value
esNS23-0.4960.620
ICES 36F8150.7410.458
ICES 37F7190.2800.780
ICES 37F820-0.1300.897
ICES 38F6210.1510.880
ICES 39F519-0.4900.6242
ICES 39F6190.9100.363
ICES 40F58-1.8610.063
ICES 40F6701
ICES 40F711-2.0240.043
ICES 41F57-0.3020.763
ICES 41F69-1.0370.3
ICES 41F7101.0730.283
ICES 42F611-1.090.276

Using stratified-season (1 July–31 October) means in the lowest quartile of data filtered by season, depth (within 10 m of the seafloor) and salinity (≥30). Data were also analysed using aggregated data from all adjoining rectangles (see esNS – eastern southern North Sea). The sign of the MK statistic gives the direction of the trend. Statistically significant trend (p<0.05) in bold. n, number of years with data. Data from all years were used in analyses, including years when the number of data points (count) was less than five (see Table d)

Table d: Summary statistics for dissolved oxygen (mg/l) in the aggregated ICES rectangles in the eastern southern North Sea. Results are shown per year (1990–2014) as the total number of samples (count) in the available dataset, the minimum and maximum values, the median, mean, standard deviation (SD) and standard error (SE) of the mean, the mean in the lowest quartile of the data (Q25), and the standard deviation of the Q25. NA, not applicable. No data were available in 2007 and 2008
YearCountMin ValueMax ValueMedianMeanSDSEmeanQ25sdQ25
1990585,169,707,307,280,740,106,390,51
1991315,209,206,636,781,070,195,550,28
1992207,068,337,397,520,430,107,120,04
1993185,678,707,517,260,840,206,140,50
1994195,178,357,027,010,900,215,860,51
199517,807,807,807,80NANA7,80NA
1996255,038,656,496,450,830,175,500,42
199716,726,726,726,72NANA6,72NA
1998377,258,568,057,970,340,067,500,21
1999184,677,525,925,970,730,175,100,27
2000295,128,157,056,860,880,165,680,33
2001145,998,167,457,360,520,146,760,54
2002413,937,336,165,900,860,134,780,42
2003262,828,625,725,921,970,393,550,56
2004664,509,866,076,311,180,155,010,28
2005286,008,867,597,570,810,156,490,41
2006244,5712,007,867,901,380,286,751,11
2009145,337,626,856,830,620,176,100,62
2010155,707,606,976,770,670,175,890,30
2011215,238,507,527,330,780,176,430,89
2012195,867,966,936,940,550,136,240,33
2013175,707,596,526,580,490,126,030,19
2014365,007,926,126,370,680,115,630,39
ALL5782,8212,007,056,861,110,055,400,64

Skagerrak

In the Skagerrak, mean near-bed dissolved oxygen concentrations in the lowest quartile (2006–2014) over the large-scale assessment region were 4–6 mg/l. Annual means were generally above 3–4 mg/l and 30–40% saturation (Figure g). Variability in the data was high and is largely attributable to the complex oceanography of the region, and high environmental variability (Erlandsson et al., 2006; Hansen and Bendsten, 2013a,b; Lehmann et al., 2014). The Skagerrak is well known for having strong haline stratification (van Leeuwen et al., 2015). Water depths reach 200 m close to the coast, and the environmental conditions that lead to oxygen deficiency in the Skagerrak are different to those influencing the eastern part of the southern North Sea and the Kattegat. The deep water is open and well ventilated horizontally, resulting in oxygen deficiency being largely restricted to fjords, which were not included in this assessment (SMHI, 2016).

Mann-Kendall analyses using the annual mean data showed no significant trends in oxygen concentration or percentage saturation in the Skagerrak (Table a and Table b).

Analyses by ICES rectangle showed that regions with lower oxygen concentrations (i.e. <6 mg/l) were located in coastal regions. However, these values are not considered to indicate oxygen deficiency in this region.

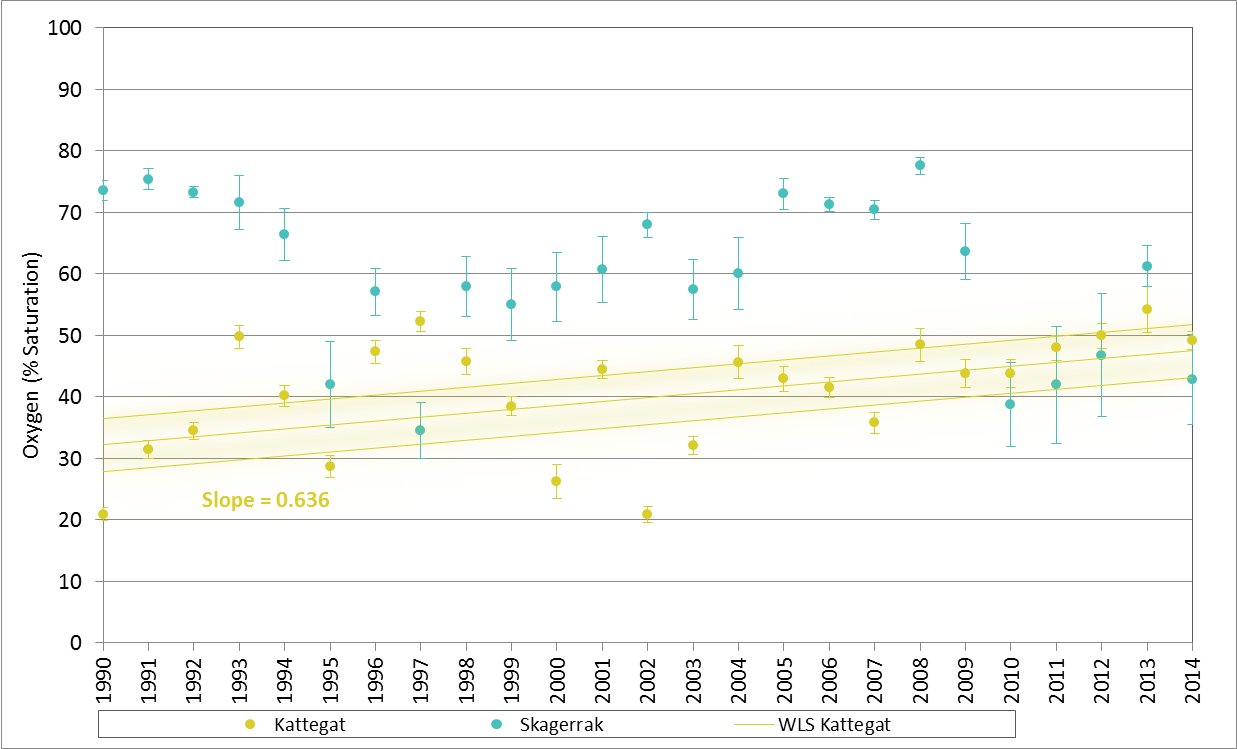

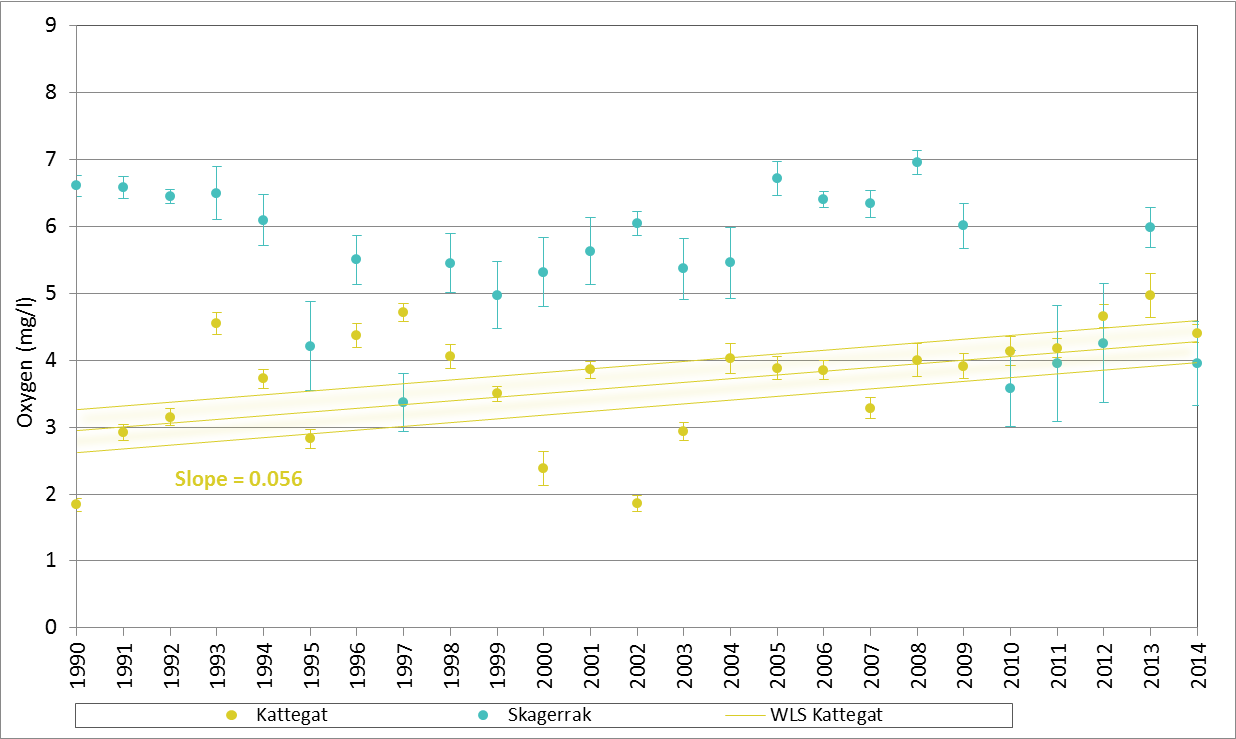

Figure g: Dissolved oxygen in the Kattegat (yellow dots) and Skagerrak (blue dots) for the period 1990–2014, shown as stratified-season (1 July–31 October) means for the lowest quartile of the data ± the 95% confidence interval. Results are shown for years with five or more data points after filtering by season, depth (within 10 m of the seafloor) and salinity (≥30) (for additional details on number of samples per year and minimum values, see Table e). (i) oxygen concentration (mg/l), (ii) oxygen percentage saturation. WLS, weighted least squares regression using the confidence interval as weight. Shading indicates 95% confidence levels around the WLS. The slope of the WLS regression is shown; significant trends were identified using Mann-Kendall analyses

Kattegat

For the period 2006–2014, annual stratified-season means in dissolved oxygen concentration were lower than for the other assessment areas of the Greater North Sea, but generally above 2 mg/l and 20% saturation (Figure g). Analyses by ICES rectangle showed that regions with the lowest oxygen concentration (2–4 mg/l) were located in the southern parts of the Kattegat. These values are not considered to indicate oxygeHeading 3n deficiency in this region. Variability in the data was high due to complex topography and oceanography (Hansen and Bendsten, 2013a,b; Lehmann et al., 2014; SMHI, 2016). The Kattegat and Sound are particularly vulnerable to hypoxia and anoxia (absence of oxygen or severe oxygen depletion), because the halocline is strong and tends to lie at 15–30 m depth. In some areas, the halocline may at times be near the seafloor. During these events, the volume of bottom water is low and oxygen levels depend on replenishment by horizontal advection.

For the offshore Kattegat, 2002 was a particularly hypoxic year (i.e. <2 mg/l, Figure g). This was attributed to several weeks of extremely calm weather, which prevented the horizontal advection of oxygen across the seafloor (Ærtebjerg et al., 2002; SMHI, 2007).

Mann-Kendall analyses showed a significant upward trend in the Kattegat for dissolved oxygen concentration (Table a) and percentage saturation (Table b).

The Sound

Annual stratified-season means in dissolved oxygen concentration (Figure h) were highly variable, ranging from 1 to 5 mg/l and 10% to 55% saturation during the period 2006–2014. Variability in the data was high due to complex topography and oceanography (Hansen and Bendsten 2013a,b; Lehmann et al., 2014; SMHI 2016). Mann-Kendall analyses using the annual mean data showed no significant trends in oxygen concentration or percentage saturation (Tables aandb).

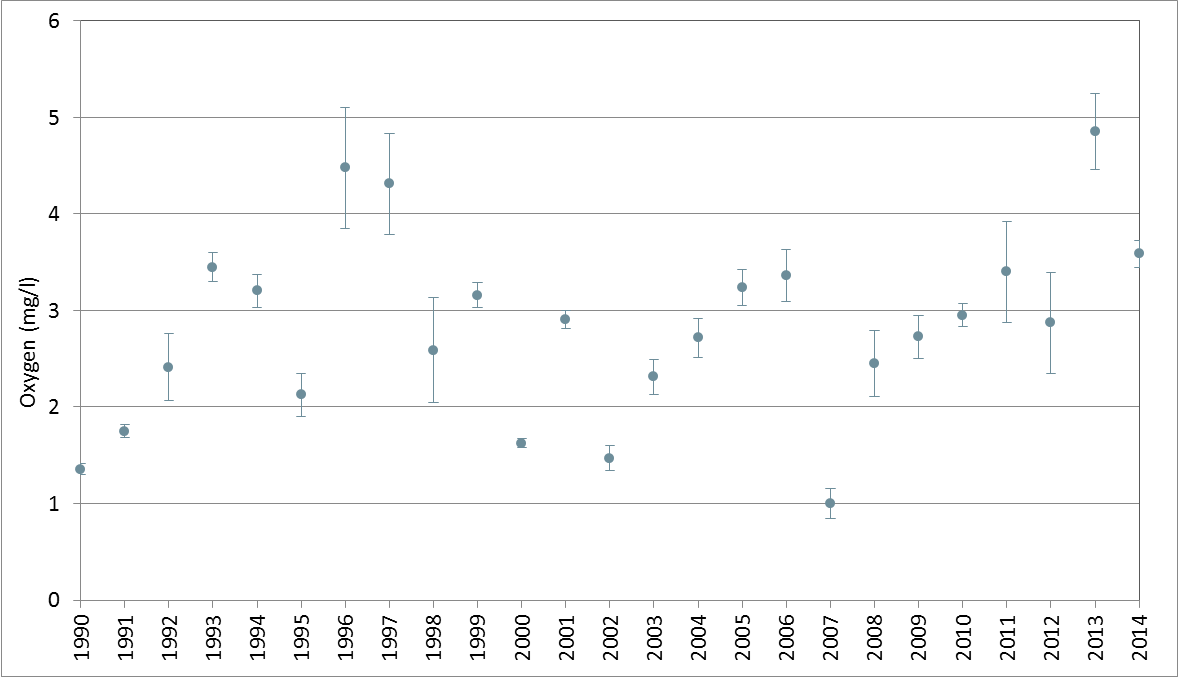

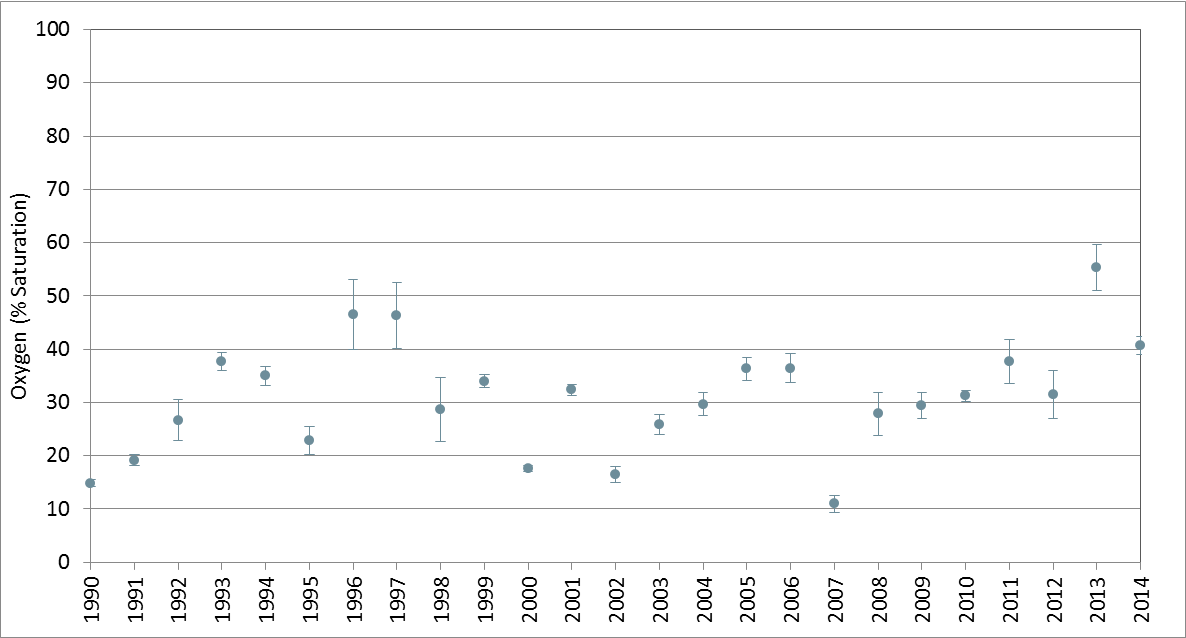

Figure h: Dissolved oxygen in the Sound for the period 1990–2014, shown as stratified-season (1 July–31 October) means for the lowest quartile of the data ± the 95% confidence interval. Results are shown for years with five or more data points after filtering by season, depth (within 10 m of the seafloor) and salinity (≥30) (for additional details on number of samples per year and minimum values, see Table e). (i) oxygen concentration (mg/l), (ii) oxygen percentage saturation

English Channel

In the English Channel, mean near-bed dissolved oxygen concentrations in the lowest quartile of the data were >6 mg/l. Annual stratified-season means (Figure i) were generally >6 mg/l and 80% saturation, with relatively few data points in this area.

The Mann-Kendall analyses using the annual mean data showed no significant trends in oxygen concentration or percentage saturation in the English Channel (Tables aandb).

Celtic Seas

The mean near-bed dissolved oxygen concentration (2006–2014) in the lowest quartile of the data in the large-scale region of the Celtic Seas was >6 mg/l. Annual stratified-season means (Figure i) were generally >6 mg/l and 80% saturation, with relatively few data points in this area.

In one ICES rectangle (38E1) in the Celtic Seas, the mean near-bed oxygen concentration in the lowest quartile of the data was in the 4–6 mg/l range. Data in this rectangle are available from 2007 only, and the mean value in the lowest quartile of the data (5.8 mg/l) is the same in both the longer dataset (1990–2014) and the shorter dataset (2006–2014). Oxygen deficiency in this region is attributable to local issues within Killybegs Harbour, as reported on in the third application of the Common Procedure (see EPA and Marine Institute, 2016).

The Mann-Kendall analyses using the annual mean data showed no significant trends in oxygen concentration or percentage saturation in the Celtic Seas (Tables aandb).

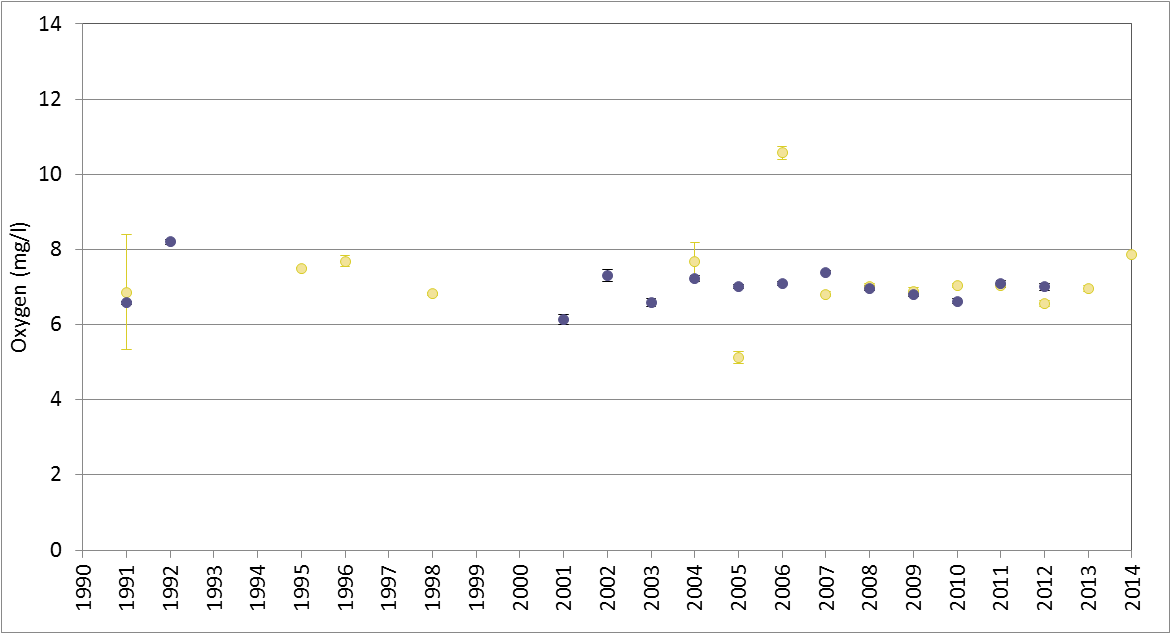

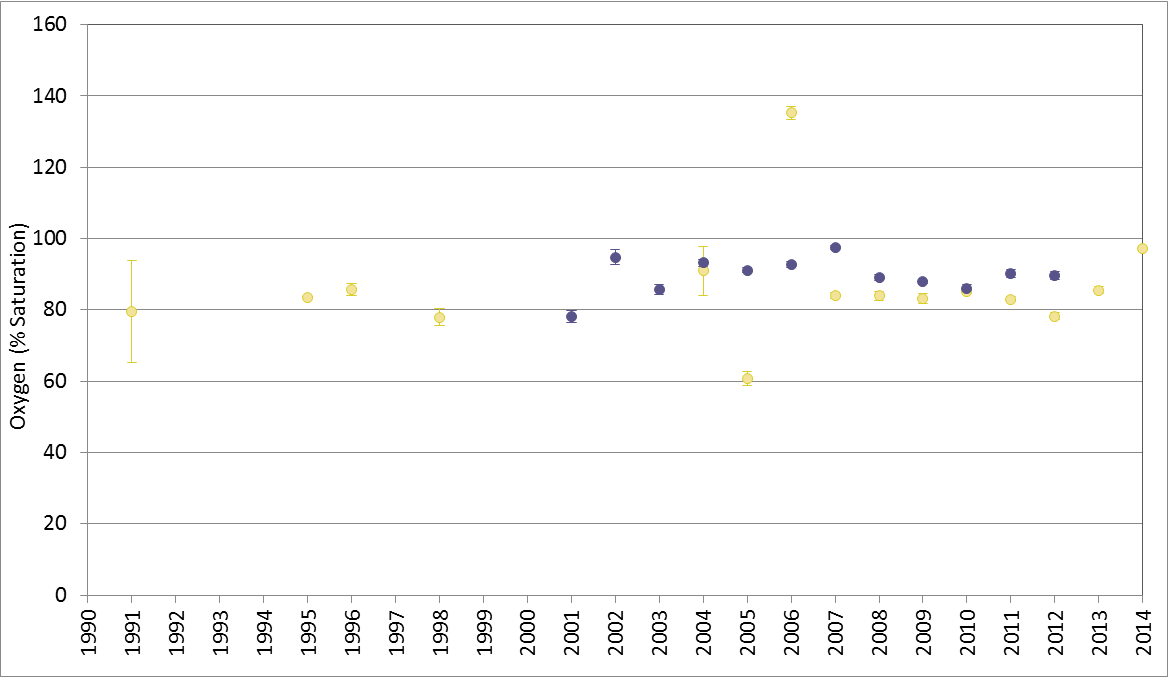

Figure i: Dissolved oxygen in the English Channel (purple dots) and Celtic Seas (yellow dots) for the period 1990–2014, shown as stratified-season (1 July–31 October) means for the lowest quartile of the data ± the 95% confidence interval. Results are shown for years with five or more data points after filtering by season, depth (within 10 m of the seafloor) and salinity (≥30) (for additional details on number of samples per year and minimum values, see Table e). (i) oxygen concentration (mg/l), (ii) oxygen percentage saturation.

Bay of Biscay and Iberian Coast

For the large-scale assessment region for the Bay of Biscay and Iberian Coast, mean near-bed dissolved oxygen concentrations for the period 2006–2014 were >6 mg/l. Data availability was poor in this region. Four ICES rectangles indicated lower oxygen concentrations (4–6 mg/l, Figure 3) but there were insufficient data for detailed analyses. Mann-Kendall analyses showed no significant trends in oxygen concentration or percentage saturation for the Bay of Biscay and Iberian Coast region.

Confidence ratings

Confidence in data availability is moderate-to-high due to temporal and / or spatial gaps in the data in many regions. The ICES database includes a large amount of data on dissolved oxygen, measured from all depths. Once these data were filtered by depth, season and salinity, the dataset was considerably reduced: from approximately 860 000 data points, including binned CTD data, to approximately 14 000 data points for the period 1990–2014, and approximately 7300 data points for the period 2006–2014. The largest dataset (see Table e) was available for the Celtic Seas; most data (2669 data points) were collected from coastal regions (Figure b) from 2006 onwards (Table e), indicating gaps in spatial and temporal coverage. Large datasets were also available for the English Channel (2256 data points) and Iberian Coast and Bay of Biscay (1515 data points), but they also represented largely coastal sampling (Figure b) from 2001 onwards (Table e), also indicating gaps in space and time. Confidence ratings for data availability are therefore moderate in these regions. Confidence ratings are higher for the Kattegat, Skagerrak and southern North Sea. Relatively large datasets were available in these regions (Kattegat 2417 data points, Skagerrak 1775 data points, southern North Sea 1505 data points, Table e); spatial coverage appeared to be sufficient (Figure b) and data were collected fairly consistently from 1990 (Table e), giving greater confidence in assessment outcomes. For the Kattegat and Skagerrak, this may be outweighed by issues relating to complex oceanography in these areas. The available dataset in the northern North Sea was relatively small (735 data points, Table e), although temporal and spatial coverage appeared to be sufficient for this region, which is not known to have low oxygen levels. Confidence ratings are therefore also high for this region.

Confidence in the methods used for assessing oxygen deficiency is moderate overall. The approach has been developed over many years, and applied in published international assessments. In this assessment, however, the method has been refined to focus specifically on measurements from near the seafloor, and to use the mean of the lowest quartile of the data, rather than the 5th percentile of all data, which has been used in previous assessments. The methodology requires further development to address questions about the feasibility and practicalities of near-seafloor monitoring and assessment.

Table e: Summary statistics for concentrations of dissolved oxygen (mg/l) in the large-scale assessment regions
NoneIberian and BayCeltic SeasEnglish ChannelKattegatNorthern NorthSkagerrakSouthern NorthSound
Yearnminmean Q25nminmean Q25nminmean Q25nminmean Q25nminmean Q25nminmean Q25nminmean Q25nminmean Q25
1990124.024.8847.537.5346.706.701230.791.84126.307.151244.696.611535.166.82211.211.36
199175.706.8786.556.581030.592.92154.545.18575.166.59525.205.84101.671.75
199216.686.6878.158.201611.073.15287.798.121065.006.45267.067.15171.292.41
199324.994.9918.308.301102.234.55107.777.80660.366.50265.676.36193.103.45
199445.425.421231.803.7278.178.21720.716.09295.176.17152.773.20
1995334.505.38967.437.501171.142.83650.094.2157.477.62171.542.13
199657.077.15366.937.69912.144.37255.166.51830.275.50474.465.74182.244.48
199786.226.4227.397.391012.624.71446.307.40710.213.37406.006.76123.364.31
1998236.506.8286.796.82932.324.06146.557.101050.275.45677.257.5272.172.59
1999194.725.351102.163.5064.995.201010.234.97413.375.25272.793.16
2000970.142.38185.636.29950.045.31825.126.56271.461.62
2001575.186.141042.573.8656.276.47850.095.63395.997.03202.642.90
200256.006.1527.877.871114.507.31890.361.86893.136.04753.934.78261.131.47
20031674.206.591121.242.931083.865.73980.235.371201.234.69241.532.31
200496.997.682853.897.22951.074.02376.167.45930.115.451334.505.36231.812.72
2005174.835.133445.197.011001.033.881354.836.32653.726.721485.926.96182.693.24
2006810.4310.583644.317.101191.793.85257.868.16835.196.40754.577.07232.743.36
20071135.276.562744.806.812446.647.40782.203.2898.538.57574.726.34311.6811.6880.871.00
20082523.505.822622.797.011774.246.97990.714.0094.966.55415.476.9617.907.90111.962.45
20092483.706.263360.106.871686.046.791060.513.91335.866.77384.536.01325.336.5592.532.72
20102602.005.964724.507.05925.606.62711.604.13335.227.03361.513.57384.696.08122.742.95
20112515.526.434295.107.031095.307.09473.164.18547.157.49410.293.95565.236.7873.003.40
20122793.806.083433.806.561185.607.01433.804.66296.577.36410.044.25605.866.6172.472.87
20134961.306.9717.167.16363.124.97296.767.57175.475.98525.206.13154.044.85
2014497.527.85893.104.40506.506.75461.533.951054.905.84333.143.59

Results are shown per year (19902014), as the total number of samples (n) in the available dataset, the minimum value, and the mean in the lowest quartile of the data (Q25). For each region, the total number of samples is shown for the period from 1990 (1990+) and the period from 2006 (2006+)

Conclusion

Il n’existe aucune insuffisance en oxygène généralisée dans l’ensemble des régions d’évaluation à grande échelle de la mer du Nord septentrionale, de la mer du Nord méridionale, de la Manche, des mers Celtiques, de la côte ibérique et du golfe de Gascogne. Le Skagerrak, le Kattegat et le Sund possèdent des teneurs moyennes plus faibles mais on ne considère pas qu’elles indiquent une insuffisance en oxygène étant donné les caractéristiques régionales propres à cette région.

Les zones localisées d’insuffisance en oxygène sont évidentes, en particulier dans la partie est de la mer du Nord méridionale. Les teneurs en oxygène et les pourcentages de saturation s’améliorent dans le Kattegat et se détériorent dans une zone très localisée de l’est de la mer du Nord méridionale.

La taille des zones évaluées et la disponibilité des données affectent les résultats d’évaluation. Une évaluation à l’échelle de la mer du Nord méridionale, par exemple, révèle des résultats qui diffèrent de ceux d’évaluations basées sur des zones plus petites, telles que les rectangles du CIEM. Des données suffisantes sont cependant nécessaires pour pouvoir réaliser des évaluations sur la base de zones plus petites. Dans le cas de l’oxygène dissous, l’utilisation de données portant uniquement sur des zones près du fond au cours de la saison de stratification limite la quantité de données pouvant être utilisées dans les évaluations.

Lacunes des connaissances

La perception de l’importance relative des processus biologiques et physiques (par exemple brassage et courants), s’agissant de contrôler les dynamiques de l’oxygène près du fond, et les impacts du changement climatique sur des processus physiques, l’insuffisance en oxygène et la consommation d’oxygène est assez médiocre. Il faudra l’améliorer afin d’établir une meilleure distinction entre les effets de l’enrichissement en nutriments et les modifications de la température de l’eau de mer résultant du changement climatique. Il est de plus nécessaire, pour réaliser des évaluations solides de l’insuffisance en oxygène, d’améliorer la disponibilité des données pertinentes. La modélisation pourrait permettre de déterminer les points chauds car l’insuffisance en oxygène est localisée et souvent de courte durée.

Key knowledge gaps include understanding of the impacts of climate change on hydrodynamic processes and oxygen deficiency. Improved understanding of the impacts of climate change require further research (Greenwood et al., 2010; Queste et al. 2013, 2016; Topcu and Brockmann, 2015; Große et al. 2016) and assessments based on oxygen saturation levels. Assessments based on saturation levels require oxygen measurements to be paired with temperature and salinity measurements so that percentage saturation can be calculated. Robust assessments of oxygen deficiency require improved availability of suitable data in many of the assessment areas. While the initial International Council for the Exploration of the Sea (ICES) dataset included good spatial and temporal coverage, the dataset was much reduced when it was filtered to obtain the specific data required for the assessments, such as from near the seafloor and for the duration of the stratification period (1 July–31 October).

The ICES database includes measurements from all depths. The application of filters (e.g. depth, season and salinity) reduces the dataset considerably, highlighting the need for targeted monitoring for future assessments. The observation that many of the available data points were in nearshore waters highlights the importance of improved spatial coverage in order to improve confidence in assessments of marine areas. Furthermore, recent publications (e.g. Greenwood et al., 2010; Queste et al., 2013, 2016; Topcu and Brockmann, 2015; Große et al., 2016), which indicate the availability of additional data not yet included in the ICES database highlight the need for existing monitoring and / or research data, which are held in local or regional databases, to be uploaded to ICES. The methodology, developed over many years and refined for this assessment, requires some further development to address questions about the feasibility and practicalities of near-bed monitoring and assessment.

Ærtebjerg G, Carstensen J, Axe P, et al (2002) The 2002 Oxygen Depletion Event in the Kattegat, Belt Sea and Western Baltic. Baltic Sea Environment Proceedings No. 90. Helsinki Comm 66 pp

Barry J and Maxwell D (2015) Tools for environmental and ecological survey design and analysis. https://r-forge.r-project.org/projects/emon/

Best M, Wither AW, Coates S (2007) Dissolved oxygen as a physico-chemical supporting element in the Water Framework Directive. Mar Poll Bull 55:53–64. doi: 10.1016/j.marpolbul.2006.08.037

European Council Directive 91/676/EEC of 12 December 1991 concerning the protection of waters against pollution caused by nitrates from agricultural sources

ECJ 2009. European Court of Justice Judgment of the Court (Third Chamber) of 10 December 2009. European Commission v United Kingdom of Great Britain and Northern Ireland. Failure of a Member State to fulfil obligations – Environment – Directive 91/271/EEC – Urban waste water treatment - Article 3(1) and (2), Article 5(1) to (3) and (5) and Annexes I and II – Initial failure to identify sensitive areas – Concept of ‘eutrophication’ – Criteria – Burden of proof – Relevant date when considering the evidence – Implementation of collection obligations – Implementation of more stringent treatment of discharges into sensitive areas. Case C-390/07 European Court Reports 2009 I-00214

EPA and Marine Institute (2016) Ireland National Eutrophication Report under the Common Procedure, 2016. ICG EUT 17/4/Info.3. Compiled by the Environmental Protection Agency and the Marine Institute. 53 pp

Erlandsson CP, Stigebrandt A, Arneborg L (2006) The sensitivity of minimum oxygen concentrations in a fjord to changes in biotic and abiotic external forcing. Limnol Oceanogr 51:631–638. doi: 10.4319/lo.2006.51.1_part_2.0631

Greenwood N, Parker ER, Fernand L, et al (2010). Detection of low bottom water oxygen concentrations in the North Sea; implications for monitoring and assessment of ecosystem health. Biogeosciences 7:1357-1373

Große F, Greenwood N, Kreus M, et al (2016) Looking beyond stratification: a model-based analysis of the biological drivers of oxygen depletion in the North Sea. Biogeosciences Discuss 12:12543–12610. doi: 10.5194/bgd-12-12543-2015

Hansen JLS, Bendtsen J (2013a) Increasing hypoxia in the North Sea – Baltic Sea transition zone in a future warmer climate. 2013.

Hansen JLS, Bendtsen J (2013b) Parameterisation of oxygen dynamics in the bottom water of the Baltic Sea-North Sea transition zone. Mar Ecol Prog Ser 481:25–29. doi: 10.3354/meps10220

Kendall, MG (1975) Rank correlation methods,4th ed.; Charles Griffith: London.

Lehmann A, Hinrichsen HH, Getzlaff K, Myrberg K (2014) Quantifying the heterogeneity of hypoxic and anoxic areas in the Baltic Sea by a simplified coupled hydrodynamic-oxygen consumption model approach. J Mar Syst 134:20–28. doi: 10.1016/j.jmarsys.2014.02.012

Levin L, Ekau W, Gooday AJ, et al (2009) Effects of natural and human-induced hypoxia on coastal benthos. Biogeosciences 2063–2098. doi: 10.5194/bgd-6-3563-2009

Mann HB (1945) Non-parametric tests against trend. Econometrica, 13, 245-259.

OSPAR Agreement 2010-3. The North-East Atlantic Environment Strategy. Strategy of the OSPAR Commission for the Protection of the Marine Environment of the North-East Atlantic 2010–2020

OSPAR Agreement 2013-8. Common Procedure for the Identification of the Eutrophication Status of the OSPAR Maritime Area. Supersedes Agreements 1997-11, 2002-20 and 2005-3

Queste BY, Fernand L, Jickells TD, Heywood KJ (2013). Spatial extent and historical context of North Sea oxygen depletion in August 2010. Biogeochemistry 113:53–68. doi: 10.1007/s10533-012-9729-9

Queste BY, Fernand L, Jickells TD, et al (2016) Drivers of summer oxygen depletion in the central North Sea. Biogeosciences Discuss 12:8691–8722. doi: 10.5194/bgd-12-8691-2015

SMHI (2007) Swedish National Report on Eutrophication Status in the Kattegat and the Skagerrak. OSPAR Assessment 2007. 103 pp.

SMHI (2016) Swedish National Report on Eutrophication Status in the Skagerrak, Kattegat and the Sound. OSPAR Assessment 2016. ICG EUT 17/4/Info.6. 70 pp.

Topcu HD, Brockmann UH (2015) Seasonal oxygen depletion in the North Sea, a review. Mar Pollut Bull 99:5–27. doi: 10.1016/j.marpolbul.2015.06.021

van Leeuwen S, Tett P, Mills D, van der Molen J (2015) Stratified and non-stratified areas in the North Sea: Long-term variability and biological and policy implications. J Geophys Res Ocean 120:4670–4686. doi: 10.1002/2014JC010485
